产品详细内容
产品型号: 65-4329-02-20
产品品牌: NAGANO KEIKI Co., Ltd.
功能
- This device is a pressure transmitter that converts pressure into an electric signal of 4~20 mA DC and transmits it through a detection unit using a semiconductor strain gauge and a built-in electronic circuit. Improves electrical and mechanical reliability and comes standard with zero span adjustment.
规格
- Shape (Mounting): Terminal Box Type (Large) Zero Tone Span Adjustable
- Connections: G3/8B
- Material/Sealing Method: Fully Welded (SUS630 (17-4 PH), SUS316)
- Pressure Range: MPa_0~0.5
- Accuracy: ±1.0%F.S.
- Power: 24 VDC ±10%
- Output: 4~20 mA DC (2 wire)
- Treatment: Pear
相关产品推荐
您可能还对以下产品感兴趣
理化检测
65-3528-81 High Performance Temperature Sensor for General Still Surfaces S-Type Series -50~800°C Low Temperature Type 15φ (Flat) Straight Type E S-121E-01-0-TC1-W
型号: 65-3528-81
品牌: ANRITSU METER CO., LTD.
理化检测

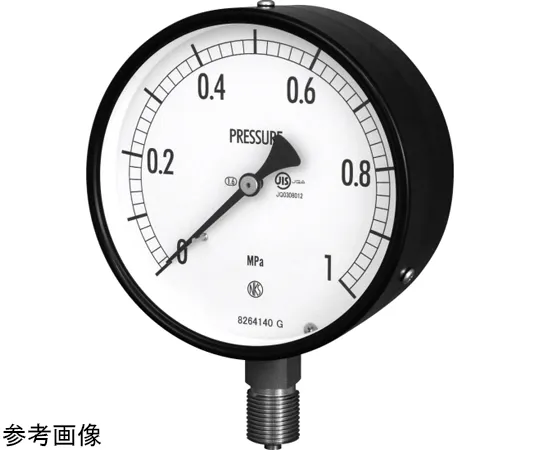

69-3909-17 φ100 Pressure Gauge JIS Standard Pressure Gauge AE15 General R3/8 D Frame (Mounting Hole) AE15-281-0.1-0.1MPA
