产品详细内容
产品型号: 63-6954-49
产品品牌: TE Connectivity
功能
- M12 Field installable B cord connector with shield
- TE connectivity shielded M12 connector with screw lock type can be securely connected. This connector has thread terminals and cable ground and is field service compatible. This rugged connector features a nickel-plated copper alloy shell and gold-plated contacts to ensure secure connection.
- Features and Benefits: Shielded ConnectorGold plated on nickel contactB Cord Polarity IP67 UL Flame Retardant rating: UL94V-0
- Use: M12 Connector is a European sensor connector ideal for industrial and factory automation connections. This M12 connector has B-cord polarity and is used first in fieldbus applications such as interbus and profibus systems.
规格
- Number of pieces: 1
- Number of contacts: 5
- Plug/Socket: Plug
- Connector size: M 12
- Terminal Method: Screw
- Shell size: 20
- Current rating: 4A
- IP protection rating: IP 67, IP 68
- Contact Gender: Male
- Rated voltage: 125 V
- Bonding type: screw
- Body orientation: right angle
- Series: T 411
- Housing Material: Brass
- Contact Plating: Gold
- RoHS compliance status: Compliance
- Securities Code: 124 -7144
相关产品推荐
您可能还对以下产品感兴趣
电子元件控制设备
63-7482-65 TEConnectivity黑卤素无热收缩管6.4mmSleeveDia。x 1.2米长，ZH-100系列2:1比例 ZH-100-1/4-0
型号: 63-7482-65
品牌: TE Connectivity
电子元件控制设备
63-4750-67 RS PRO,红色绝缘压痕标签端子，0.5mm 2到1.5mm2,22AWG到16AWG, 4.75 x 0.8mm 267-4439
型号: 63-4750-67
品牌: RS PRO
电子元件控制设备

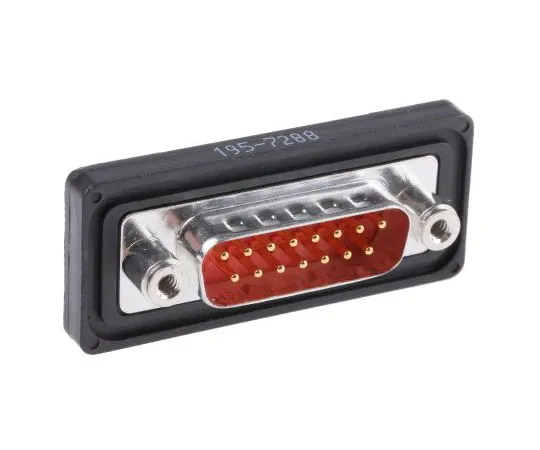

63-4722-62 FCT-一个MOLEX公司的FWD系列面板安装，15针D-sub连接器插头，外壳尺寸防水D-sub FWDF15P
