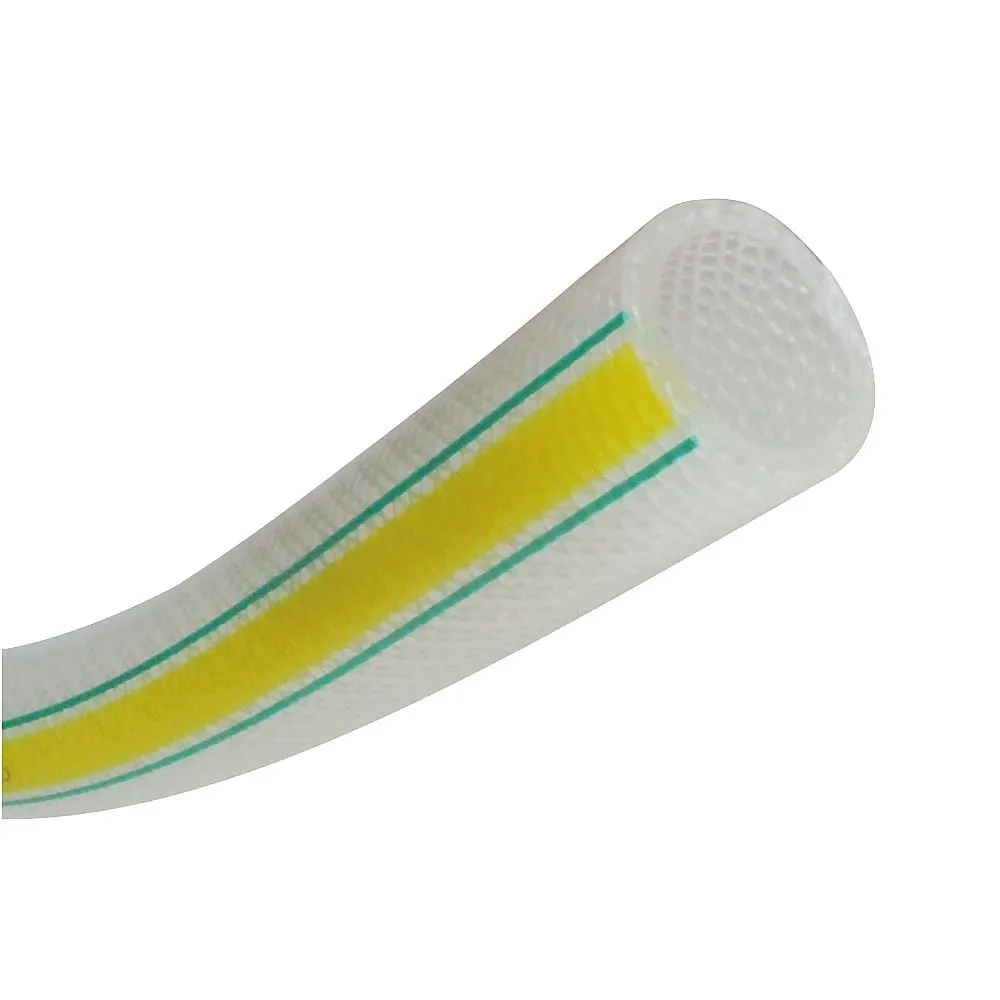

1-2895-03-01 Chemical-Resistant, Oil-Resistant, Food Non-PVC Pressure Resistant Hose, Ecolon Hose, Inner Diameter 9 mm x Outer Diameter 15.0 mm, Length 1 m EC-9-1
产品描述
产品型号: 1-2895-03-01产品品牌: TOYOX CO., LTD. 功能 "Main ": For […]
联系我们
产品详细内容
产品型号: 1-2895-03-01
产品品牌: TOYOX CO., LTD.
功能
- "Main ": For transporting food, beverages, oily foods, chemicals, cosmetics, etc.
- "Non-PVC": A pressure-resistant blade hose with chemical resistance, low elution, and low odor that can be d to transport chemicals, chemicals, pure water, cosmetics, and food since the inner tube is made of polyolefin resin.
- Compliance with the Food Sanitation Law (the Ministry of Health, Labour and Welfare Notification No. 196)
- Compliant with RoHS2 (as of October 2021)
- *Hose for indoor only.
规格
- Inner Diameter x Outer Diameter (mm): 9 x 15
- Pressure (MPa): 0~0.8 (23°C), 0~0.5 (60°C)
- Operating temperature range: -5~60°C
- Length: 1 m
- Material: Body/Polyolefin Resin + Styrene Resin, Reinforcement/Polyester Thread
- Minimum b radius: 50 mm
- RoHS3 (EU)2015/863 Certificates can be issued
