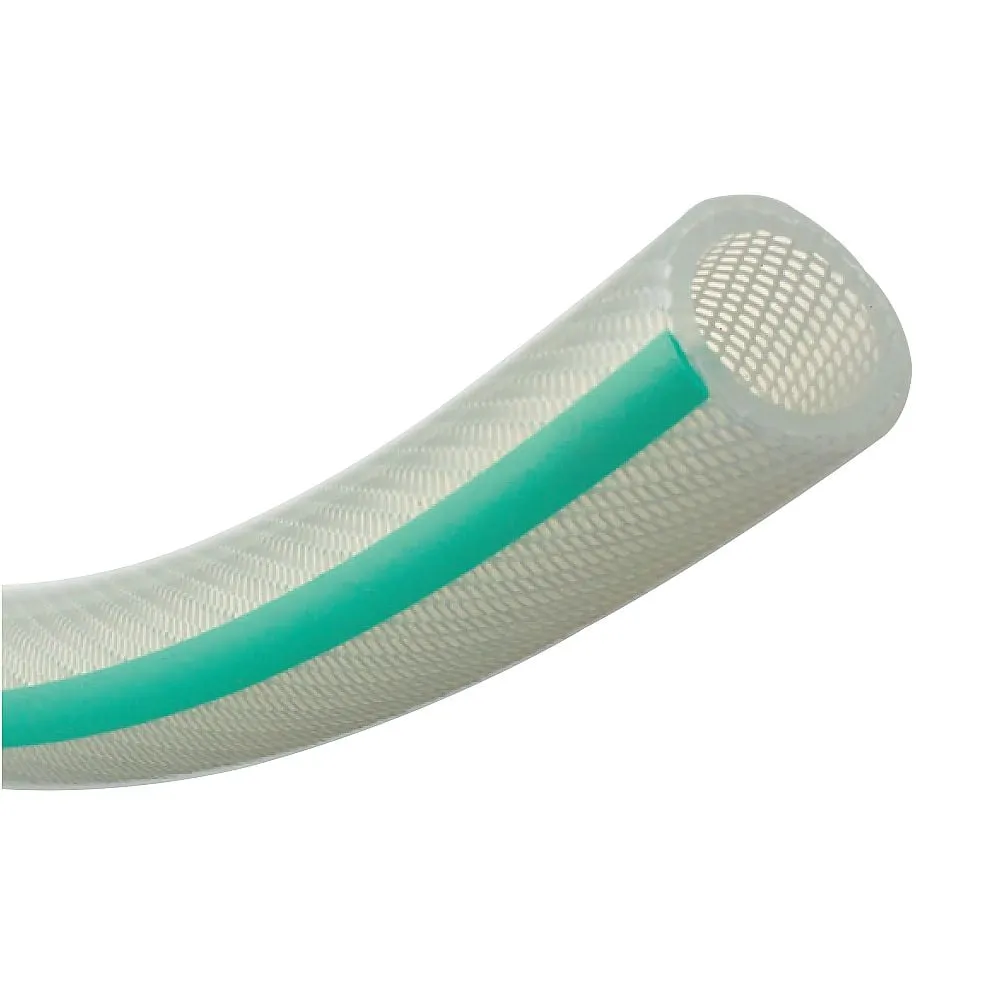

1-1721-08-01 Heat Resistant/Food Pressure Resistant Hose TOYOSILICONE Hose Inner Diameter 25.4 mm x Outer Diameter 35.5 mm Length 1 m TSI-25-1
产品描述
产品型号: 1-1721-08-01产品品牌: TOYOX CO., LTD. 功能 "Heat and co […]
联系我们
产品详细内容
产品型号: 1-1721-08-01
产品品牌: TOYOX CO., LTD.
功能
- "Heat and cold resistance": Heat-resistant and pressure-resistant silicone rubber blade hose for pressure feeding. Heat-resistant hose that can be d in a wide range of temperature conditions from -30°C to 150°C.
- "Trouble prevention": High pressure resistance and safety with thread slip-off prevention structure.
- "Safe and secure": Can be d as a safe and secure heat resistant hose by taking advantage of its characteristics such as low elution, insulation, and low odor.
- "Flexibility": Compared to rubber hoses and PVC hoses, it is flexible and easy to perform piping, etc.
- Compliant with Food Sanitation Law, FDA (US Food and Drug Administration), USP (US Pharmacopeia) ClassVI, RoHS2 revised regulations for safety and peace of mind. Can be safely d as a food hose.
规格
- Inner Diameter x Outer Diameter (mm): 25.4 x 35.5
- Pressure (MPa): 0~0.5
- Operating temperature range: -30~150°C
- Length: 1 m
- Material: Body/Silicone Rubber, Reinforcement/Polyester Thread
- Minimum b radius: 220 mm
- RoHS3 (EU)2015/863 Certificates can be issued
