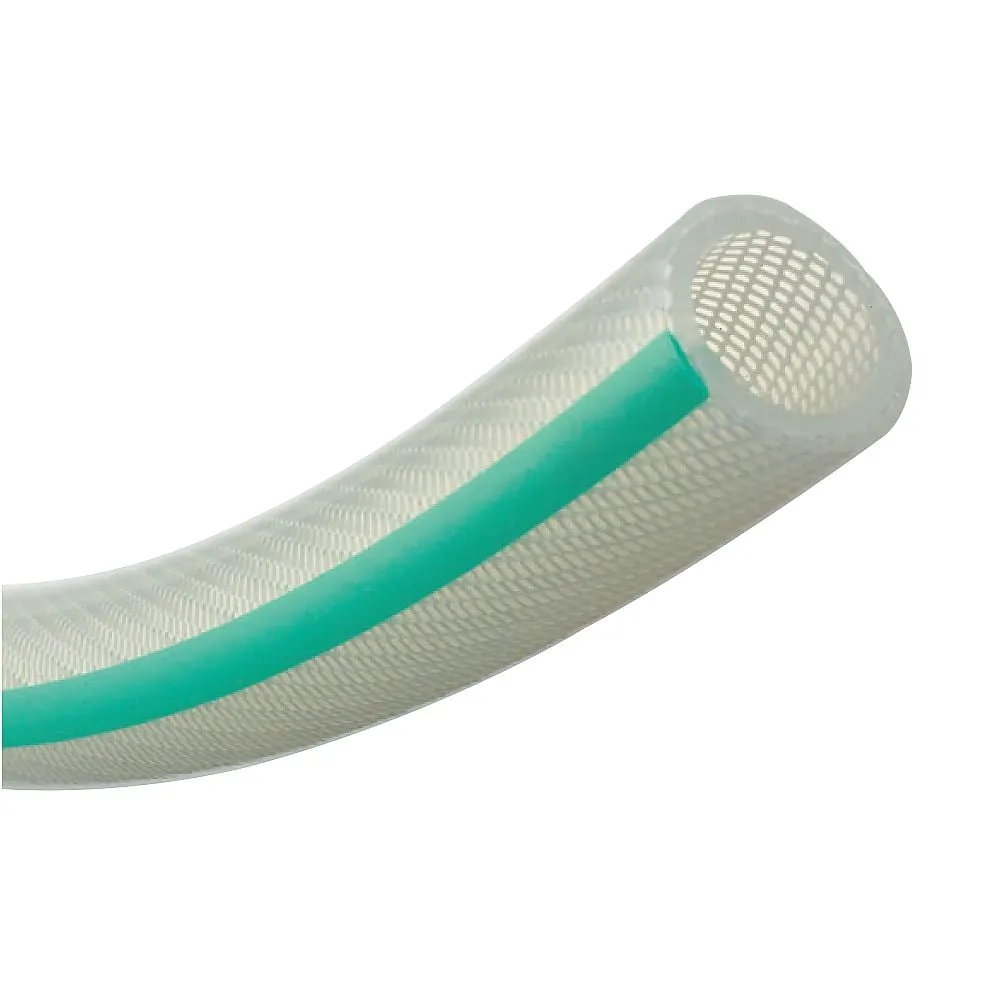

1-1721-02-01 Heat Resistant/Food Pressure Resistant Hose TOYOSILICONE Hose Inner Diameter 6.3 mm x Outer Diameter 12.3 mm Length 1 m TSI-6-1
连接器/管件/泵阀

1-1721-02-01 Heat Resistant/Food Pressure Resistant Hose TOYOSILICONE Hose Inner Diameter 6.3 mm x Outer Diameter 12.3 mm Length 1 m TSI-6-1

型号: 1-1721-02-01
品牌: TOYOX CO., LTD.

产品描述

产品型号: 1-1721-02-01产品品牌: TOYOX CO., LTD. 功能 "Heat and co […]

联系我们

咨询热线

18866622123

微信咨询

微信号: ahyhk8

微信二维码

产品详细内容

产品型号: 1-1721-02-01
产品品牌: TOYOX CO., LTD.

功能

  • "Heat and cold resistance": Heat-resistant and pressure-resistant silicone rubber blade hose for pressure feeding. Heat-resistant hose that can be d in a wide range of temperature conditions from -30°C to 150°C.
  • "Trouble prevention": High pressure resistance and safety with thread slip-off prevention structure.
  • "Safe and secure": Can be d as a safe and secure heat resistant hose by taking advantage of its characteristics such as low elution, insulation, and low odor.
  • "Flexibility": Compared to rubber hoses and PVC hoses, it is flexible and easy to perform piping, etc.
  • Compliant with Food Sanitation Law, FDA (US Food and Drug Administration), USP (US Pharmacopeia) ClassVI, RoHS2 revised regulations for safety and peace of mind. Can be safely d as a food hose.

规格

  • Inner Diameter x Outer Diameter (mm): 6.3 x 12.3
  • Pressure (MPa): 0~1.0
  • Operating temperature range: -30~150°C
  • Length: 1 m
  • Material: Body/Silicone Rubber, Reinforcement/Polyester Thread
  • Minimum b radius: 80 mm
  • RoHS3 (EU)2015/863 Certificates can be issued
