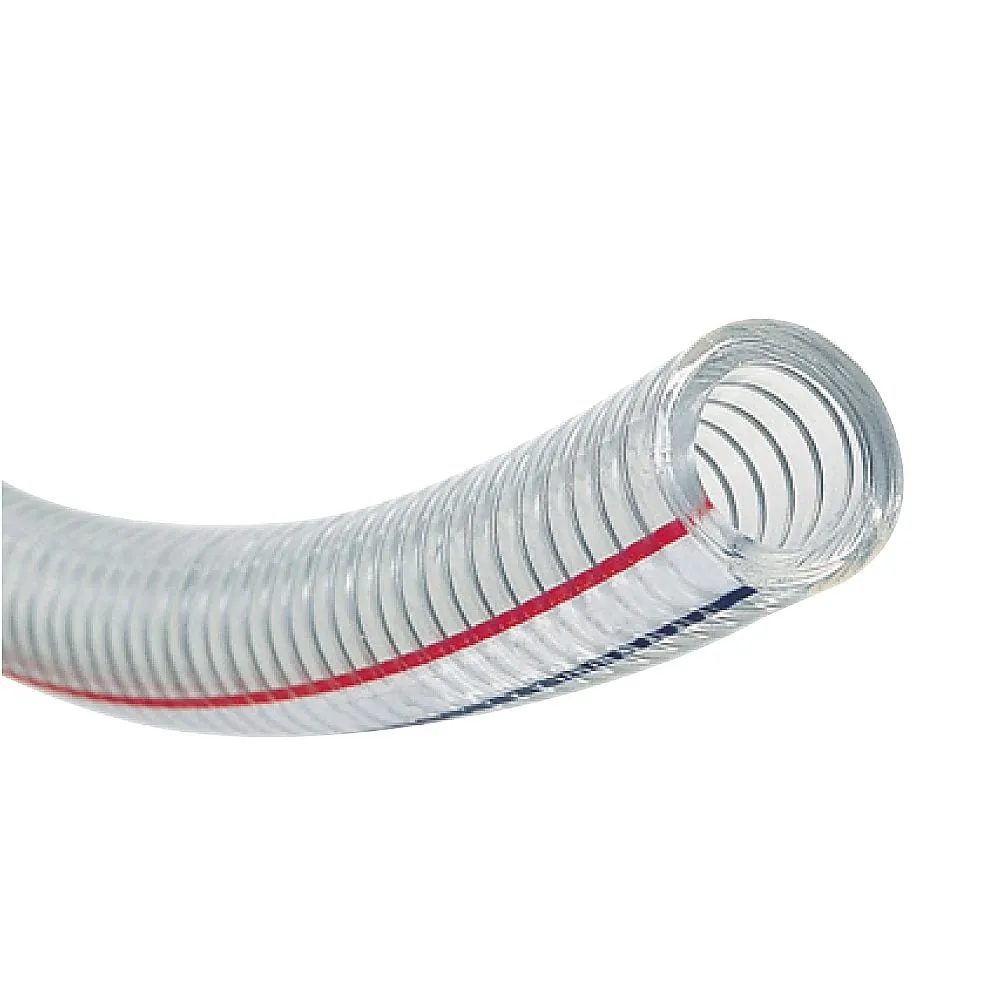

1-1720-03-01 Pressure Hose for water, oil, chemicals, and air (for plant equipment and mechanical piping) TOYOSPRING Hose Inner diameter 9.0 mm x Outer diameter 15.0 mm Length 1 m TS-9-1
连接器/管件/泵阀

1-1720-03-01 Pressure Hose for water, oil, chemicals, and air (for plant equipment and mechanical piping) TOYOSPRING Hose Inner diameter 9.0 mm x Outer diameter 15.0 mm Length 1 m TS-9-1

型号: 1-1720-03-01
品牌: TOYOX CO., LTD.

产品描述

产品型号: 1-1720-03-01产品品牌: TOYOX CO., LTD. 功能 "Main applic […]

联系我们

咨询热线

13310663713

微信咨询

微信号: Ahy81013

微信二维码

产品详细内容

产品型号: 1-1720-03-01
产品品牌: TOYOX CO., LTD.

功能

  • "Main applications": Plant piping, mechanical piping suction and pressure feeding
  • "Multipurpose resin hose": Pressure-resistant hose that can be d for pumping and suction (vacuum) of various fluids such as water, oil, chemicals and air.
  • "Prevention of breakage and crushing": Reinforced structure with hard steel wire coil, resistant to breakage and crushing, and stable fluid supply
  • "Long life": The inside and outside surfaces of the hose have excellent oil resistance and do not harden and have a long life.
  • "Plenty of Sizes": Pressure-Resistant Hose for Suction and Pressure Feeding with Plenty of Size Variations (Inner Diameter 6~100 mm)
  • Transparency: Transparency allows you to see the fluid inside.
  • Compliant with RoHS2 (as of October 2021)

规格

  • Inner Diameter x Outer Diameter (mm): 9 x 15
  • Pressure (MPa): -0.1~0.8
  • Operating temperature range: -5~60°C
  • Length: 1 m
  • Material: Body/Soft PVC, Reinforcement/Hard Steel Wire
  • Minimum b radius: 40 mm
  • RoHS3 (EU)2015/863 Certificates can be issued
