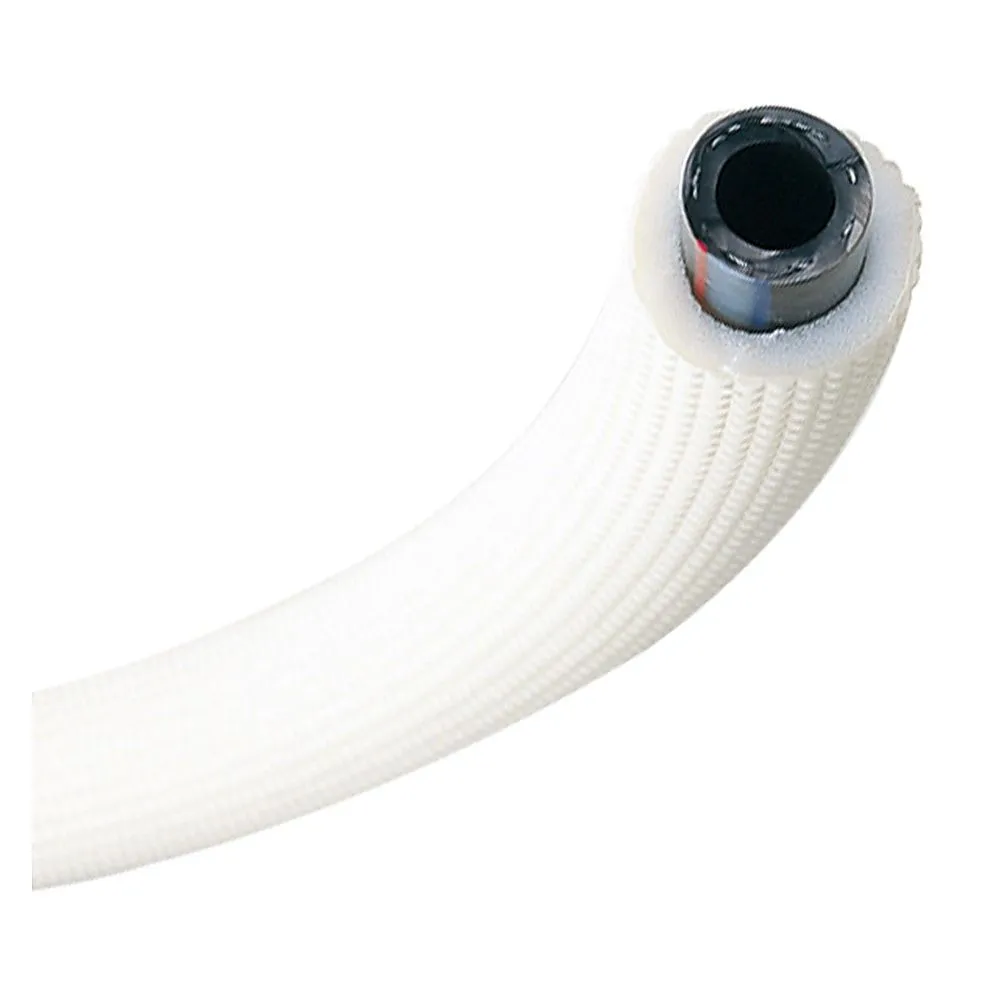

1-1718-04-01 Cooling Water Pressure-Resistant Blade Hose for Dew Condensation Prevention Hybrid TOYODROP Hose Inner Diameter 19 mm x Outer Diameter 26 mm x Insulation Outer Diameter 36 mm Length 1 m HTD-19-1
产品描述
产品型号: 1-1718-04-01产品品牌: TOYOX CO., LTD. 功能 Main : For p […]
联系我们
产品详细内容
产品型号: 1-1718-04-01
产品品牌: TOYOX CO., LTD.
功能
- Main : For pumping cooling water for plant piping and mechanical piping
- "Dew condensation prevention hose": Pressure-resistant blade hose for cooling water, whose outer skin is covered with heat insulating material
- "Shape Retention": Compared to general blade hoses, it is more resistant to breaking and crushing of hoses. It is suitable for special structure equipment piping and machine integration.
- Flexible: Soft and easy to pipe
- Compliant with RoHS2 (as of October 2021)
规格
- Inner Diameter x Outer Diameter x Insulation Outer Diameter (mm): 19 x 26 x 36
- Pressure (MPa): 0~1.0 (23°C), 0~0.6 (50°C)
- Operating temperature range: -5~60°C
- Length: 1 m
- Material: Body/Soft Vinyl Chloride, Reinforcement/Polyester Thread
- Minimum b radius: 90 mm
- RoHS3 (EU)2015/863 Certificates can be issued
