65-3535-17 ［Out of stock］Thin/Narrow Groove Temperature Sensor TH Series with ISO Document Set -50~400°C Type 11 Type E TH-11E-010-1-TC1-ASP
产品描述
产品型号: 65-3535-17产品品牌: ANRITSU METER CO., LTD. 功能 The TH […]
联系我们
产品详细内容
产品型号: 65-3535-17
产品品牌: ANRITSU METER CO., LTD.
功能
- The TH series is a temperature sensor that can be inserted into gaps and grooves to measure the surface temperature of the side and bottom surfaces.
- [Application] Temperature control and temperature measurement during heat sink performance tests, etc.
规格
- Material: Grip Material/Black Phenol Resin
- Operating temperature range (°C): -50~400
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: 50,000 cycles or more
- Head Shape: Type 11
- Type of thermocouple: Type E
- Head length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200, 400°C
相关产品推荐
您可能还对以下产品感兴趣
理化检测

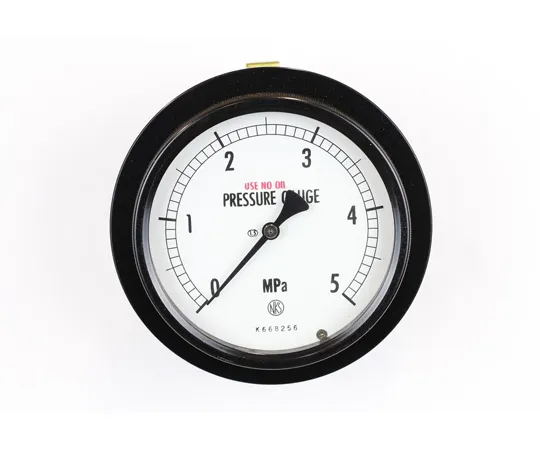

65-4305-01-20 Sealed Pressure Gauge (100Φ) Oil Bound Type D Frame (Mounting Bracket) 5 MPa with Inspection Certificate BE15-141
型号: 65-4305-01-20
品牌: NAGANO KEIKI Co., Ltd.
理化检测
理化检测

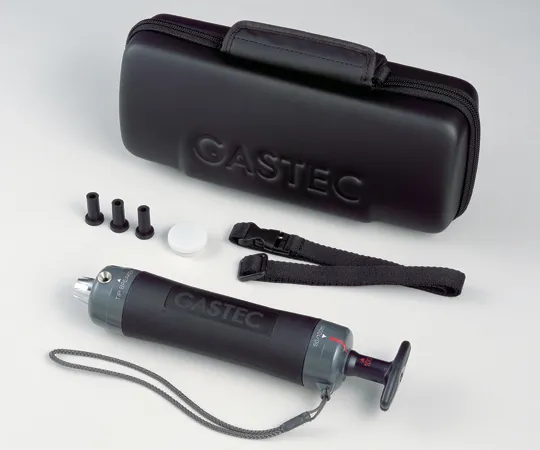

63-5593-45 Gas sampler set with English arrangement GVE-100S
