规格

• Frequency Range: 421, 422, 440 MHz band Specific Low Power Radio 47 channel
• Number of channels: alternate 20 channels, relay 27 channels, relay fixed at 440 MHz/TX and 421 MHz/RX
• Radio Type: F3E (FM)
• Operating temperature range: Body -10°C to 50°C, Charger 0°C to +40°C
• Rated voltage: 2.4~3.0 VDC (battery terminal)
• External Power Terminal: 4.5~6.0 VDC
• Current consumption: Transmit: approx. 100 mA, Receive rated output: approx. 180 mA, Standby: approx. 100 mA, Battery save operation: approx. 17 mA
• Microphone Impedance: Approx. 2 kΩ
• External Dimensions (Excluding Protrusions): (Approx.) 58 W x 100 H x 19Dmm
• Weight (weight, approx.): (including battery) L 138 g, S 134 g
• Batteries: AA alkaline batteries (2 pcs) or EBP57N (2 pcs set)
• Antenna Length (mm/approx.): L Type 175, S Type 35
• Transmit power: 10 mW fixed
• Modulation method: reactance modulation
• Communication mode: single and half duplex
• receive method: direct conversion
• Sensitivity: -14dBμ or less (12dB SINAD)
• Low frequency output: 70 mW or more (8 Ω)
• [Standard Accessories]
• Belt Clip EBC-30
• hand strap
• Neck strap attachment parts (strap chains)
• [Note]

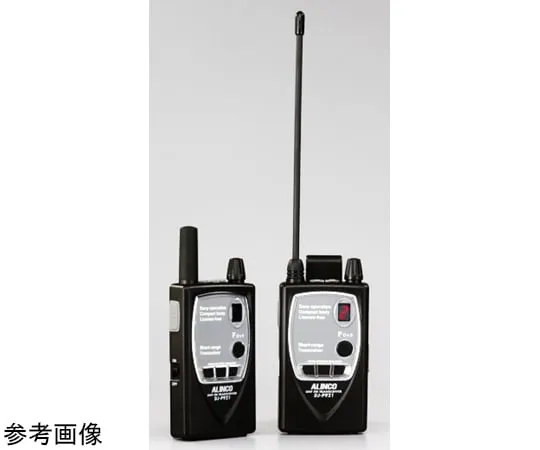

• The DJ-P9/P11/P21 series models are not equipped with the care monitor, code squelch, and individual call function. Please be careful when mixing.
• For technical compliance reasons, it is not possible to replace the antenna after purchase.
• It is not dustproof or waterproof.
