65-3534-53 ［Out of stock］Tape Type Multi-Purpose Temperature Sensor ST Series with ISO Document Set -50~350°C Pointed Calibration Temperature Point: 100, 200°C E Type ST-13E-015-GW1-ANP
产品描述
产品型号: 65-3534-53产品品牌: ANRITSU METER CO., LTD. 功能 The ST […]
联系我们
产品详细内容
产品型号: 65-3534-53
产品品牌: ANRITSU METER CO., LTD.
功能
- The ST Series is an ultra-thin flexible tape-shaped multi-purpose temperature sensor.
- [Application] Temperature measurement in vehicle interior temperature distribution experiments, etc.
- Temperature control and temperature measurement of the substrate during reflow
- Temperature control and temperature measurement during the manufacture of liquid crystal displays (LCD)
- Temperature measurement in the activation process of cells such as lithium-ion batteries
- Temperature measurement during nailing test of lithium-ion battery
- Temperature measurement of professional irons, etc.
规格
- Operating temperature range: -50~350°C
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- tape width: standard type
- Tip Shape: Spur
- Coating Shape: Polyimide Coating/Tip Exposed
- Thermocouple Type: E Type
- Tape length (mm): 150
- Cord length (m): 1
- Cord Outer Diameter (mm): 1.2 x 1.7
- Coating Material: Glass Fiber
- Heat-resistant Temperature (°C): 300
- Plug Shape: Mini Plug
- Calibration Temperature Point: 100, 200°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测

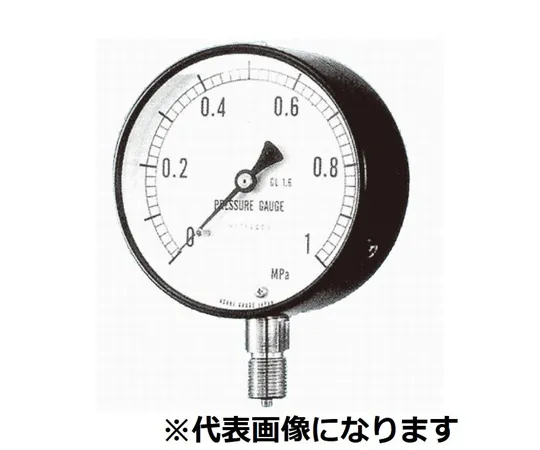

65-3444-68 Bourdon Pressure Gauge Type A Pressure Range (MPA): 0~0.04 101-A380X0.04MPA
型号: 65-3444-68
品牌: Asahi Gauge Manufacturing
理化检测

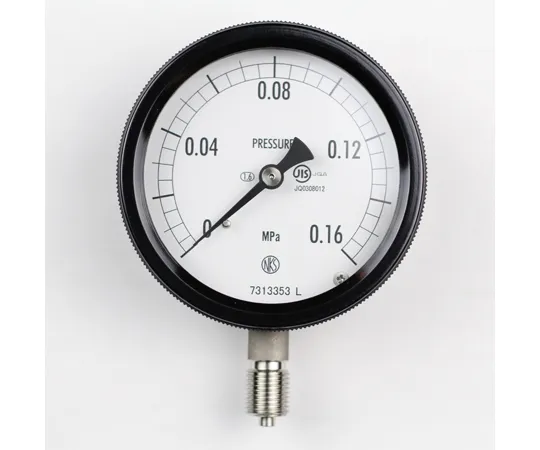

65-4296-36-20 Sealed Pressure Gauge (75Φ) Vertical A Frame with 0.16 MPa with Inspection Certificate BC10-283
