65-3534-31 ［Out of stock］Screw Temperature Sensor SC Series with ISO Document Set -50~400°C Screw Diameter: M3 Glass Fiber E Type with Stainless Steel Shield SC-32E-SG1-ANP
产品描述
产品型号: 65-3534-31产品品牌: ANRITSU METER CO., LTD. 功能 The SC […]
联系我们
产品详细内容
产品型号: 65-3534-31
产品品牌: ANRITSU METER CO., LTD.
功能
- The SC series is a temperature sensor with a screw fastening structure on the tip.
- [Application] Temperature control and temperature measurement of metal plate by heating using cartridge heater, etc.
规格
- Material: Screw Fastener Material/Stainless Steel
- Operating temperature range (°C): -50~400
- Tolerance at – 40~150 deg. C (deg. C): ±3.5
- Response Time (sec): 5
- Corresponding Screw Diameter: M3
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3
- Coating Material: Glass Fiber with Stainless Steel Shield
- Heat-resistant Temperature (°C): 400
- Plug Shape: Mini Plug
- Calibration Temperature Point: 100, 200, 400°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测
61-8518-36 Bộ màng cho OE-273AA/Đối với OE-270AA 3 chiếc 0CC00001
型号: 61-8518-36
品牌: DKK-TOA CORPORATION
理化检测
理化检测

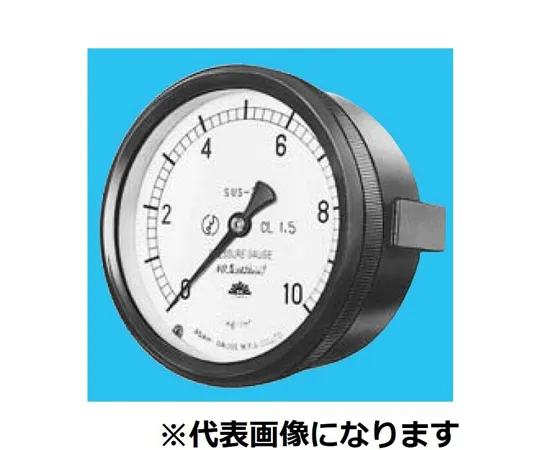

65-3522-09 Closed Pressure Gauge D-Type Pressure Range (MPA): 0~0.05 315-D891X0.05MPA
型号: 65-3522-09
品牌: Asahi Gauge Manufacturing
理化检测

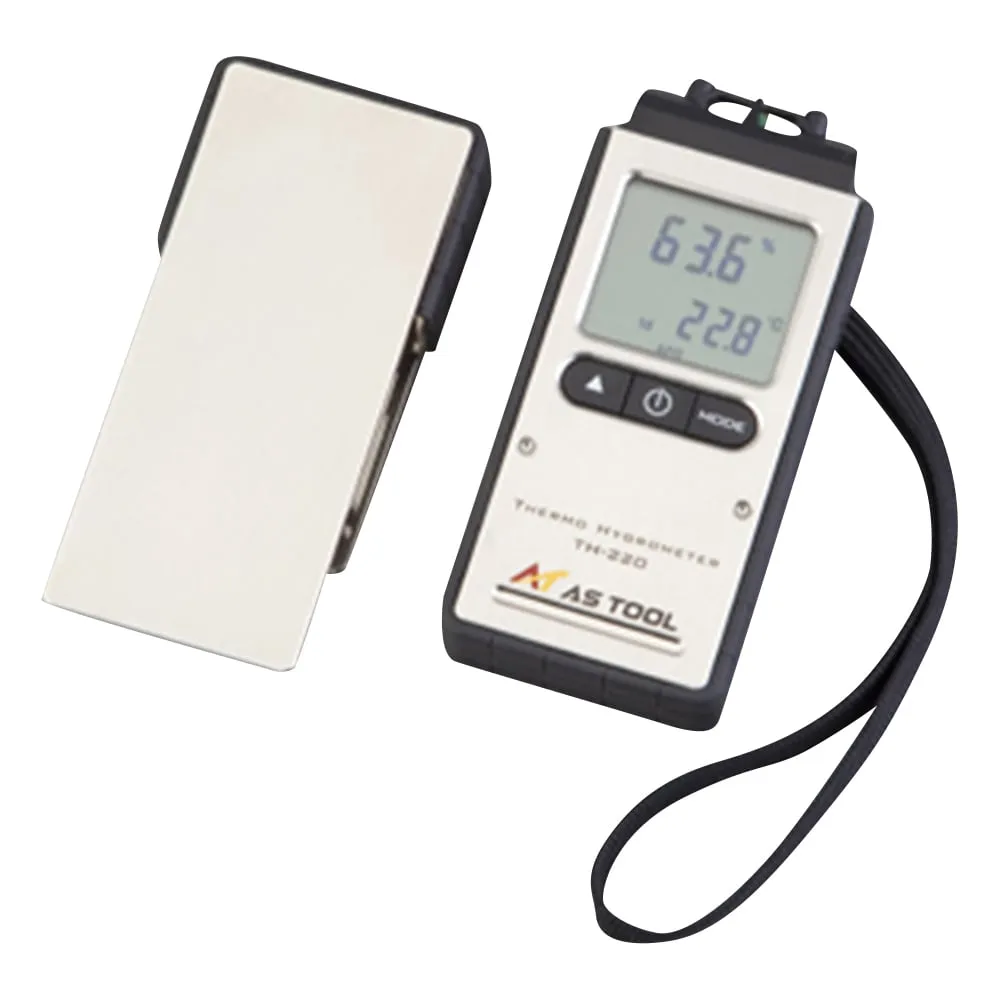

2-3364-01-20 Exporter Thermo-Hygrometer with Calibration Certaificate TH-220
