65-3533-66 ［Out of stock］Temperature sensor with built-in magnet MG series ISO document set -50~250°C Head shape: Type 21 Type E MG-21E-TS1-ASP
产品描述
产品型号: 65-3533-66产品品牌: ANRITSU METER CO., LTD. 功能 The MG […]
联系我们
产品详细内容
产品型号: 65-3533-66
产品品牌: ANRITSU METER CO., LTD.
功能
- The MG Series is a temperature sensor suitable for measuring surfaces that can be fixed with magnets, such as equipment and mold surfaces.
- [Application] Surface temperature measurement of motors and engines, etc.
规格
- Material: Body Material/Teflon
- Operating temperature range (°C): -50~250
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Durability: 50,000 cycles or more
- Head Shape: Type 21
- Type of thermocouple: Type E
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测
理化检测

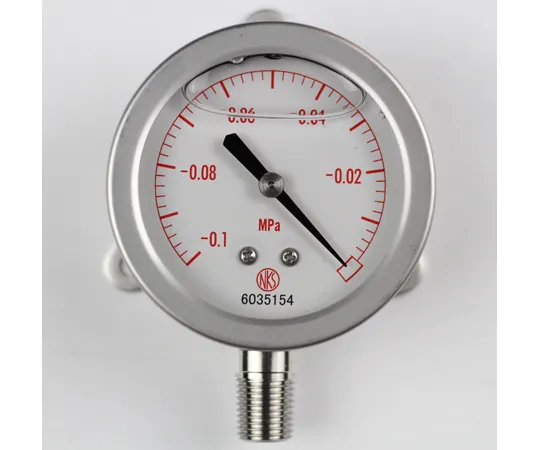

65-4323-96 Glycerine Included Pressure Gauge (60Φ) -0.1~0 MPa Vacuum Gauge (Negative Pressure Gauge) GV50-273
