65-3533-56 ［Out of stock］Durable Type Temperature Sensor for High Temperature Surfaces HHT Series with ISO Document Set -50~800°C Pipe Shape: Straight K Type HHT-41K-10-TC1-ASP
产品描述
产品型号: 65-3533-56产品品牌: ANRITSU METER CO., LTD. 功能 The HH […]
联系我们
产品详细内容
产品型号: 65-3533-56
产品品牌: ANRITSU METER CO., LTD.
功能
- The HHT series is a durable type temperature sensor for high-temperature surfaces, capable of measuring temperatures above 800°C
- [Application] Measurement of surface temperature of slab (steel), etc.
规格
- Material: Guard Material/Stainless Steel (SUS303), Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~800
- Tolerance at 500 deg. C (deg. C): ±3.8
- Response Time (sec): 4
- Durability: More than 60,000 cycles at 800°C
- pipe shapes: straight
- Thermocouple Type: K Type
- Pipe length (mm): 1000
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
- Calibration Temperature Point: 300, 500°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测

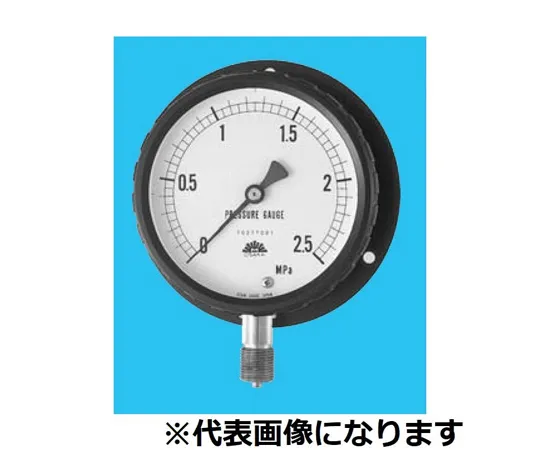

65-3487-52 Sealed Pressure Gauge Type B Heat Resistant Vibration-Resistant Pressure Range (MPA): 0~0.05 315-B750X0.05MPA-HV
