65-3532-79 ［Out of stock］Temperature Sensor for Static Surface Type A Series with ISO Document Set -50~500°C Elbow with Parallel 30 mm Grip Type E A-234E-00-1-TC1-ASP
产品描述
产品型号: 65-3532-79产品品牌: ANRITSU METER CO., LTD. 功能 A-Seri […]
联系我们
产品详细内容
产品型号: 65-3532-79
产品品牌: ANRITSU METER CO., LTD.
功能
- A-Series is a general-purpose temperature sensor for stationary surfaces.
- We can measure the surface temperature of any object, not just the mold surface.
- [Application] Surface temperature control and temperature measurement of resin molded metal molds
- Surface temperature control and temperature measurement of iron plate
- Temperature control and temperature measurement during asphalt paving
规格
- Material: Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~500
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1.5
- Durability: 75000 cycles or more
- Head Size (φmm): 15
- Guard Material and Contact Plate Coating: Stainless Steel Guard (Standard)
- Pipe shape and contact plate orientation: elbow, parallel
- Type of thermocouple: Type E
- Pipe length (mm): 30
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 300, 500°C
- Document content: Inspection report, calibration certificate, traceability system diagram
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测
理化检测
理化检测

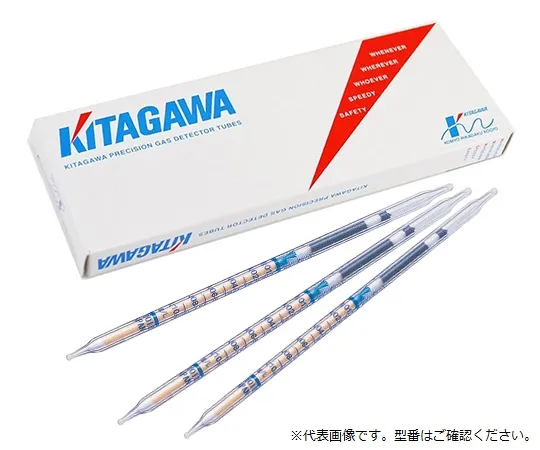

61-9735-81 气体检测管101S乙炔<具有校准证书，测试证书，可追溯系统图> 11010100
