产品详细内容
产品型号: 1-6683-31-57
产品品牌: GRAPHTEC Corporation
功能
- A total of 10 channels of temperature, humidity and voltage are available.
- Easy-to-read 4.3 inch TFT color LCD.
- It has a USB interface and can be connected to a computer.
- You can optionally install a wireless LAN unit.
规格
- Size (mm): About 188 x 117 x 42
- Weight (g): approximately 500
- Measuring range: Voltage/20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V, 1 -5 V/F.S., Temperature/Thermocouple: K, J, etc., Humidity/0 ~ 100%
- Input channels: Analog/10 ch, Pulse/4 ch or Logic/4 ch
- Analog input terminals: threaded terminals
- Sampling period: 10 ms to 1 h (10 ~ 50 ms voltage only, ch limited by sampling period)
- All ch isolated input
- Internal memory: 4GB
- Display contents: Analog waveform, past data during measurement, digital value
- Operating System: Windows ® Vista ®/7/8/8.1
- Power: 100 ~ 240 VAC 50/60 Hz (AC adapter included) or DC input (8.5 24 VDC)
- *DC-powered cable and battery packs are optional.
- We perform electrical calibration for voltage and temperature.
- *If you would like to calibrate the unit and sensor together, please contact us separately.
- *Calibration of this product is for the body only (without sensor).
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测
69-3923-28 φ100 Pressure Meter JIS Compatible Sealed Pressure Meter BE10 Corrosion-Resistant SUS Made G1/2B A Frame BE10-143-0.1-0.16MPA
型号: 69-3923-28
品牌: NAGANO KEIKI Co., Ltd.
理化检测
理化检测

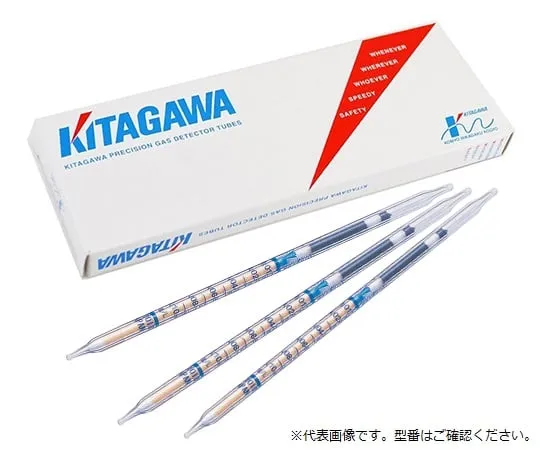

61-9737-49 气体检测管159SC氧气 > 带有校准证书，测试证书，可追溯性系统图< 11015920
