产品详细内容
产品型号: 4-2435-01
产品品牌: TOPCON TECHNOHOUSE
功能
- It can be used as a standard measuring machine for measuring brightness and chromaticity of FPD (Flat Panel Display) and light source lamps.
- Because of its high chromaticity accuracy and high speed, it is suitable for use in the field of light source color measurement such as in-line measurement and light management of light sources.
规格
- 内容:主体
- 外部尺寸 (公厘) :120 x 325 x 162
- 光接收元件:硅光电二极管
- 光学系统:物镜/f=80 mm F 2.5,目镜/视野5°
- 测量角度:2°/1°/0.2°/0.1° (切换型)
- 测量距离:350 mm~∞ (距物镜硬件前端的距离)
- 测量范围:自动/手动5级切换
- x, y, L (x, y:色度坐标， L:亮度)和±， u (X、Y、Z:三色数值)， u ‘， v ’ L (u'， v':色度坐标， L:亮度)和±， X, Y, Y, Tc, duv, L (Tc:相关色温， duv:偏差)和±CIE 1976, a, b, Eab和±CIE 1976 L, u, v, Euv*和±
- 亮度测量范围:0.01至1200万 cd/m 2
- 测量时间:约0.5秒
- 电源:AC整流器 (随附)
- 重量:3公斤
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测

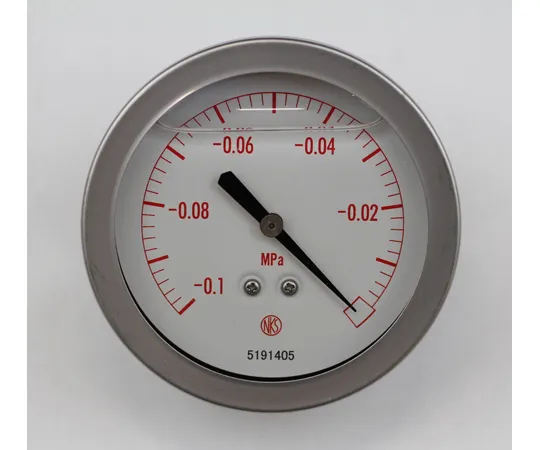

65-4326-11-20 Glycerin Pressure Gauge (75Φ) -0.1~0 MPa Vacuum Gauge (Negative Pressure Gauge) with Inspection Certificate GV56-133
