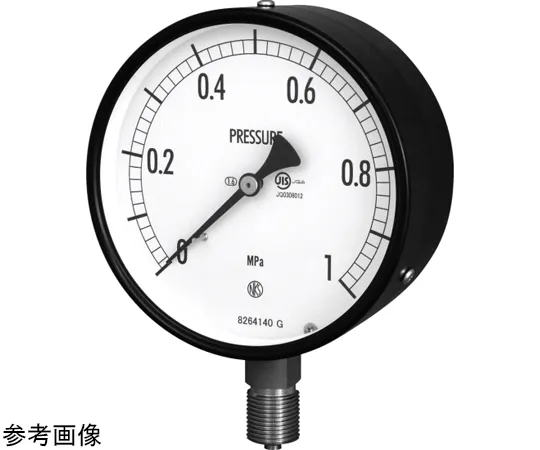

69-3913-44 φ150 Pressure Meter JIS Compatible Regular Pressure Meter AG10 Corrosion-Resistant SUS Made G1/2B A Frame AG10-143-0.1-0.1MPA
产品描述
产品型号: 69-3913-44产品品牌: NAGANO KEIKI Co., Ltd. 功能 Compati […]
联系我们
产品详细内容
产品型号: 69-3913-44
产品品牌: NAGANO KEIKI Co., Ltd.
功能
- Compatible with JIS B 7505-1:2007 Bourdon tube pressure gauge.
- A pressure gauge with a structure that transmits the elastic deformation (movement) of Bourdon tube pressure to the needle. The simple structure makes handling easy.
- It can measure in a wide pressure range and is used in a wide range of fields.
- Standard conformity certification (type approval) is possible.
- The pressure setting range is wide and corrosion resistance is required.
规格
- Type: Normal pressure gauge
- Size: φ150
- Type: Coupled meter (Coupled pressure)
- Pressure range: -0.1~0.1 MPa
- models: vertical
- Shape: A Frame
- Connecting Screws: G1/2B
- Application: Made of corrosion-resistant SUS
