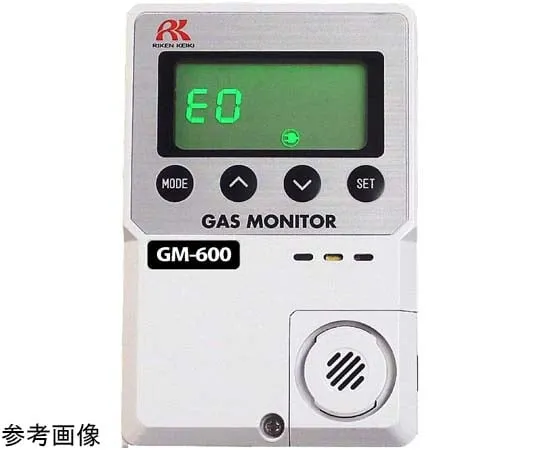

67-8025-93 Simple Stationary Type Ethylene Oxide Gas Detection Alarm integrated type 100 VAC specification (with traceability certificate) GM-600-00AC
产品描述
产品型号: 67-8025-93产品品牌: RIKEN KEIKI Co., Ltd. 功能 Compact […]
联系我们
产品详细内容
产品型号: 67-8025-93
产品品牌: RIKEN KEIKI Co., Ltd.
功能
- Compact design that is smaller and lighter than conventional models
- Improved button design makes it easier to use.
- Easy installation on site!
- Vivid LCD display for outstanding visibility
- This product comes with a traceability certificate. Breakdown of attached documents: gas inspection report (acceptance certificate issued by gas manufacturer), traceability system (traceability system diagram for gas production), traceability chart (traceability system diagram for equipment and measuring instruments)
规格
- Power Supply: 100 VAC (±10%) 50 Hz/60 Hz
- Detection principle: semiconductor type
- Detection method: Diffusion type
- Target gas: E.O. (ethylene oxide)
- Alarm settings: 1st/10ppm, 2nd/50ppm
- Gas alarm type: two-stage alarm (H-HH)
- Gas alarm operation: automatic return
- Alarm delay (2nd alarm, red backlight on: within 30 seconds)
- Alarm delay time: 20 seconds (buzzer only)
- Gas alarm display: 1st/Gas name (E.O.) display Orange LED (with orange backlight), automatic reset, 2nd/Gas name (E.O.) display Red LED (with red backlight), buzzer sound, automatic reset
- External Output: Gas Alarm Contact (2nd), Non-Voltage Contact (2nd): Each 1a, Automatic Recovery
- Power consumption: Up to approximately 6VA
- Operating temperature and humidity range: -10~40°C (no sudden change), 20% to 85%Rh or less (no condensation)
- Structure: Wall mounted type/sensor integrated type
- External Dimensions (mm): Approx. 80 (W) x 120 (H) x 35.5 (D)
- Mass (g): about 200
