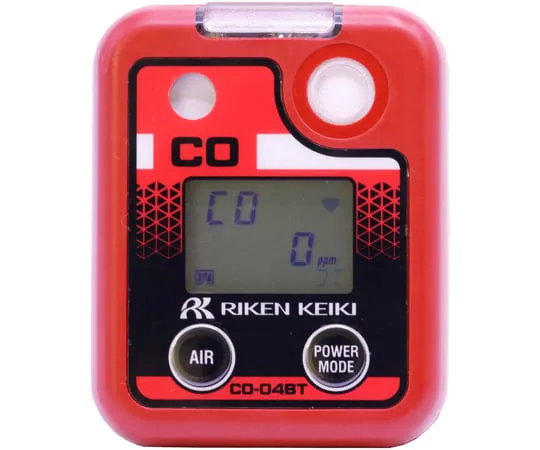

67-8024-90 Personal Carbon Monoxide Monitor (hydrogen interference reduction), battery specification, Bluetooth compatible (traceability certificate included) CO-04BTC-
产品描述
产品型号: 67-8024-90产品品牌: RIKEN KEIKI Co., Ltd. 功能 Personal […]
联系我们
产品详细内容
产品型号: 67-8024-90
产品品牌: RIKEN KEIKI Co., Ltd.
功能
- Personal Type (Small)
- Enhancement of functions essential for steelworks and steelworks (carbon monoxide sensor, which is almost free from hydrogen interference, supports the environment in which hydrogen coexists)
- Sensor warranty 3 years (* Required is the manufacturer's inspection more than once a year.)
- Supports a wide temperature range
- Bluetooth communication with smartphones and tablets (Real-time sharing of emergency alerts with remote locations via the dedicated application "RKLink"/Emails of emergency information such as gas alerts can be sent from terminals installed with the dedicated application)(RKLink: Free download from GooglePlay/AppStore)
- Sturdy design (7m drop durability test cleared)
- Dustproof waterproof structure
- Intrinsically safe explosion-proof structure
- Accessory: Heat resistant case
- This product comes with a traceability certificate. Breakdown of attached documents: gas inspection report (acceptance certificate issued by gas manufacturer), traceability system (traceability system diagram for gas production), traceability chart (traceability system diagram for equipment and measuring instruments)
规格
- Target gas: Carbon monoxide (hydrogen interference reduction type)
- Detection principle: Constant potential electrolytic type
- Sampling type: diffusion type
- Display range (ppm): 0-2000
- Resolution: 1ppm (0-300ppm), 10ppm (300-2000ppm)
- Alarm setting (ppm): 1st 50, 2nd 150, 3rd 150
- Operating temperature range (°C): -40 to +60 (No sudden change)
- Operating humidity range (%RH): 0~95 (no condensation)
- Continuous Use: Approx. 1200 hours
- Gas alarm: 3-stage alarm, STEL alarm, cumulative alarm, over alarm
- Failure alarm: Sensor connection/disconnection, battery voltage drop, calibration error, clock error, system error
- Alarm return operation: Automatic return
- Alarm operation: lamp blinks, buzzer sounds intermittently, gas concentration value blinks, vibration
- Buzzer volume (dB): 80dB or more (30 cm)
- Power supply: AAA alkaline dry cell battery/2 pcs
- Communication functions: Bluetooth4.2 (Bluetooth low energy), IrDA (data logger management program required)
- Explosion-Proof Structure: Intrinsically Safe Explosion-Proof Structure (Dry Battery Type/Ex ia IIC T4 Ga, Rechargeable Battery Type/Ex ia IIC T3 Ga)
- Protection rating: equivalent to IP66/67
- External Dimensions (mm): Approx. 54 (W) x 67 (H) x 24 (D)
- Mass (g): about 93
- Functions: Bluetooth, Data Logger (* Dedicated software "Data Loger Management Program SW-04Series for domestic use" is sold separately. [Supported OS: Windows7, 8, 10]), Vibration, One-Touch Calibration, Peak Value Display, Temperature Display
