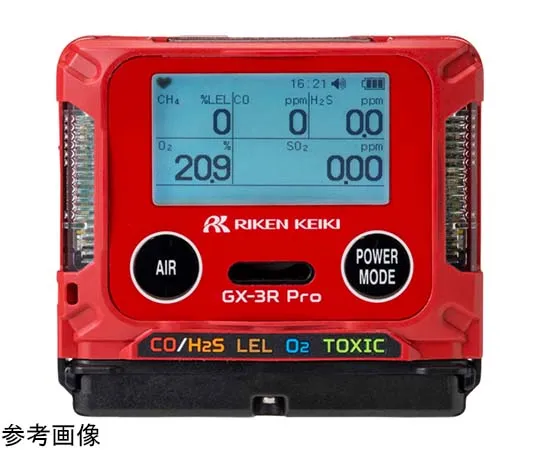

67-8024-72 Personal Multi-Gas Detector (Combustible, Oxygen, Hydrogen Sulfide, Carbon Monoxide, Carbon Dioxide (vol%)) Rechargeable Battery Type Bluetooth Compatible (with Traceability Certificate) GX-3RProBH1E1D1L1
产品描述
产品型号: 67-8024-72产品品牌: RIKEN KEIKI Co., Ltd. 功能 Sensor w […]
联系我们
产品详细内容
产品型号: 67-8024-72
产品品牌: RIKEN KEIKI Co., Ltd.
功能
- Sensor warranty 3 years (* Required is the manufacturer's inspection more than once a year.)
- Bluetooth communication with smartphones and tablets (Real-time sharing of emergency alerts with remote locations via the dedicated application "RKLink"/Emails of emergency information such as gas alerts can be sent from terminals installed with the dedicated application)(RKLink: Free download from GooglePlay/AppStore)
- Comes with a function of reading 26 kinds of combustible gas (* Only in the case of equipped with a combustible gas sensor)
- Rugged design (passed 7 m drop test)
- Intrinsically safe explosion-proof structure
- Dustproof waterproof structure
- Equipped with an external dedicated suction pump unit (model: RP-3R (Pro/S)) to support suction sampling
- Standard Accessories: Main Unit Protect Cover, AC Adapter, Belt Clip, Hand Strap
- This product comes with a traceability certificate. Breakdown of attached documents: gas inspection report (acceptance certificate issued by gas manufacturer), traceability system (traceability system diagram for gas production), traceability chart (traceability system diagram for equipment and measuring instruments)
规格
- Target gas: Combustible gas, oxygen, hydrogen sulfide, carbon monoxide, carbon dioxide
- Display Range: Flammability/0-100 (%LEL), O2/0-40.0 (vol%), H2S/0-200.0 (ppm), (ppm) 0-200.0 (CO)/CO2/0-10.00 (vol%)
- Sampling type: diffusion type
- Gas alarm: indicator lamp blinking, buzzer continuously modulated sound, gas concentration indicator blinking, vibration
- Failure alarm: System error, sensor error, battery voltage drop, calibration failure
- Failure alarm display: lamp blinks, buzzer is intermittent, and contents display
- Panic warning: two levels of preliminary warning and main warning (after 5 seconds of preliminary warning)
- Mandown warning: 3 levels of preliminary warning 1 (60 seconds), preliminary warning 2 (75 seconds) and main warning (90 seconds)
- Display: LCD digital (full dot), backlit
- Indicators: Operating status display, clock display, battery level display, temperature display, peak value display, calibration notification display
- Buzzer sound pressure (dB): about 95 (30 cm)
- Languages: Japanese/English/French/Spanish/Portuguese/German/Italian/Russian/Korean/Chinese (Simplified/Traditional)
- Bluetooth:Bluetooth 4.2(Bluetooth Low Energy)
- Data logger function Maximum number of records: 3600 (interval: 5 minutes; setting can be changed)
- Power: Rechargeable lithium ion battery unit (charging time: approx. 3 hours)
- Continuous use: Long battery mode ON/approx. 40 hours (25°C, fully charged, no alarm, no lighting), Long battery mode OFF/approx. 25 hours (25°C, fully charged, no alarm, no lighting)
- Operating temperature range (°C): -40 to +60 (No sudden change)
- Operating humidity range (%RH): 0~95 (no condensation)
- Intrinsically Safe Explosion-Proof Structure (Ex ia IIC T4 Ga)
- Protection Class: Equivalent to IP66/68(2m, 1h)
- External Dimensions (mm): Approx. 73 (W) x 65 (H) x 26 (D)
- Mass (g): about 120
