65-4326-96-20 Micro Switch Contact Pressure Gauge (100Φ) Brass H: Upper Limit 1 Contact 0.1 MPa with Inspection Certificate JM11-131
产品描述
产品型号: 65-4326-96-20产品品牌: NAGANO KEIKI Co., Ltd. 功能 This […]
联系我们
产品详细内容
产品型号: 65-4326-96-20
产品品牌: NAGANO KEIKI Co., Ltd.
功能

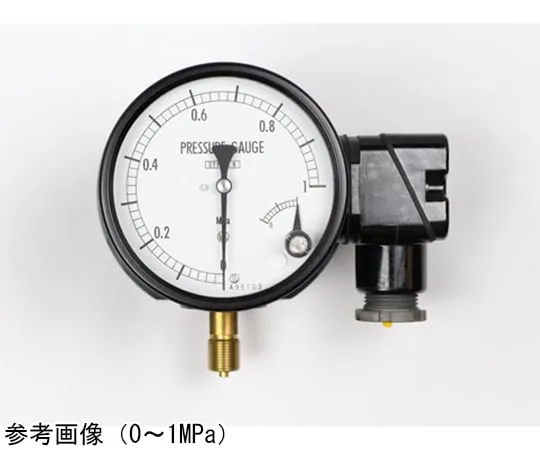

- This instrument is a pressure gauge with a contact that incorporates a mechanical contact mechanism into the indicator.
- It emits an ON/OFF electric signal at a preset pressure. This signal can generate alarms such as buzzers, bells and pilot lights, and can control processes such as motors, pumps and control valves.
规格
- Size (mm): Φ100
- Shape (Mounting): Vertical B Frame
- Connections: G3/8B
- Material: Brass
- Pressure Range: MPa_0~0.1
- Accuracy: ±1.5%F.S.
- Contact: H: Upper limit 1 Contact
- Treatment: Pear
