产品详细内容
产品型号: 65-4307-87
产品品牌: NAGANO KEIKI Co., Ltd.
功能
- This instrument is mainly used to detect differential pressure due to pressure loss in air filters for air conditioning, and can be used for very low pressure measurement. It is easy to read because of its edgewise shape, and can be used as a fine differential pressure meter as well as a flow meter and a fine pressure meter.
规格
- Magnitude (mm): -
- Shape (mounting): Panel projection type, horizontal scale type
- connections: Φ5.5 bamboo joints
- Materials: Silicone rubber, polycarbonate resin, methacrylic resin, phosphor bronze, brass, neoprene, NBR
- Pressure Range: kPa_0~0.2
- Accuracy: ±2.5%F.S.
- Treatment: Pear
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测
65-3532-36 Thermocouple Connector ANP Plug Thermocouple Type: T Type Shape: M Material: Nylon ANP-T-M-L
型号: 65-3532-36
品牌: ANRITSU METER CO., LTD.
理化检测
理化检测

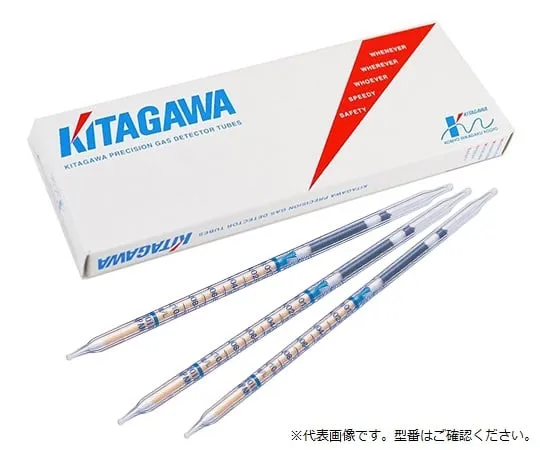

61-9737-09 气体检测管216S乙酸 > 带有校准证书，测试证书，可追溯性系统图< 11021600
