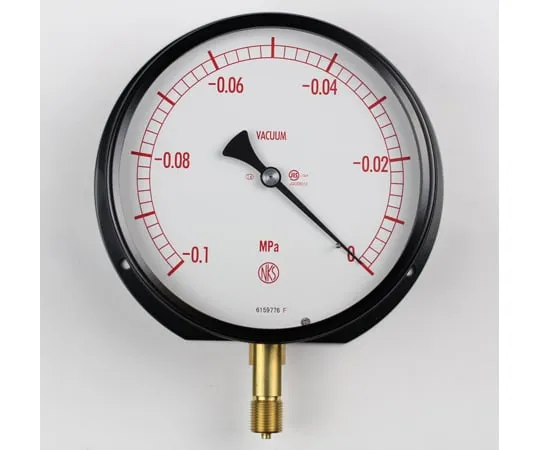

65-4305-78-20 Sealed Pressure Gauge (150Φ) Vacuum Gauge (Negative Pressure Gauge) Vertical B Frame - With 0.1~0 MPa with Inspection Certificate BG10-231
产品描述
产品型号: 65-4305-78-20产品品牌: NAGANO KEIKI Co., Ltd. 功能 A pr […]
联系我们
产品详细内容
产品型号: 65-4305-78-20
产品品牌: NAGANO KEIKI Co., Ltd.
功能
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is used in a wide range of fields.
- The use of a sealed case allows it to be used under conditions such as rain and dew. (Equivalent to JIS C 0920 IP 43)
规格
- Size (mm): Φ150
- Shape (Mounting): Vertical B Frame
- Connections: G3/8B
- Material: Brass
- Performance: Pear
- Pressure Range: MPa_-0.1~0
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
