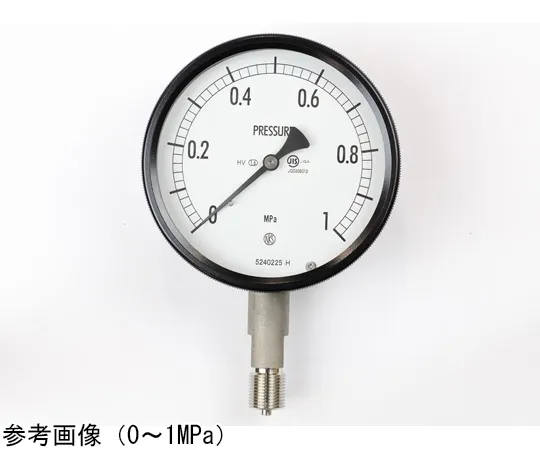

65-4298-91-20 Sealed Pressure Gauge (100Φ) Vertical A-Frame for Heat Resistance and Vibration Resistance with 0.16 MPa Inspection Certificate BE10-133
产品描述
产品型号: 65-4298-91-20产品品牌: NAGANO KEIKI Co., Ltd. 功能 A pr […]
联系我们
产品详细内容
产品型号: 65-4298-91-20
产品品牌: NAGANO KEIKI Co., Ltd.
功能
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is used in a wide range of fields.
- The use of a sealed case allows it to be used under conditions such as rain and dew. (Equivalent to JIS C 0920 IP 43)
规格
- Size (mm): Φ100
- Shape (Mounting): Vertical A-Frame
- Connections: G3/8B
- Material: SUS
- Performance: For heat and vibration resistance
- Pressure Range: MPa_0~0.16
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
