产品详细内容
产品型号: 65-4296-36-20
产品品牌: NAGANO KEIKI Co., Ltd.
功能
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is used in a wide range of fields.
- The use of a sealed case allows it to be used under conditions such as rain and dew. (Equivalent to JIS C 0920 IP 43)
规格
- Size (mm): Φ75
- Shape (Mounting): Vertical A-Frame
- Connections: G1/4B
- Material: SUS
- Performance: Pear
- Pressure Range: MPa_0~0.16
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
相关产品推荐
您可能还对以下产品感兴趣
理化检测
理化检测

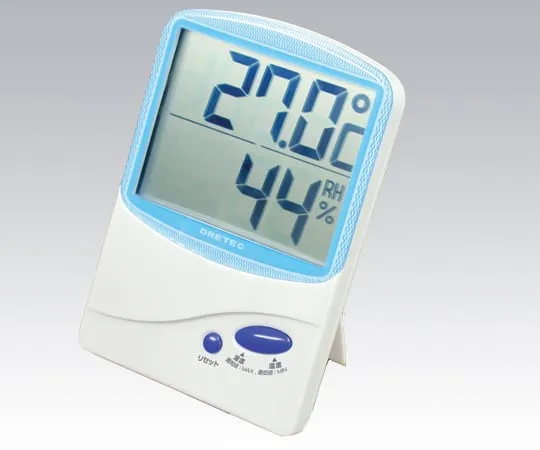

1-8672-03-57 ［Discontinued］Digital Thermo-Hygrometer with Chinese Calibration Certificate O-206BL
型号: 1-8672-03-57
品牌: DRETEC CO., LTD.
理化检测

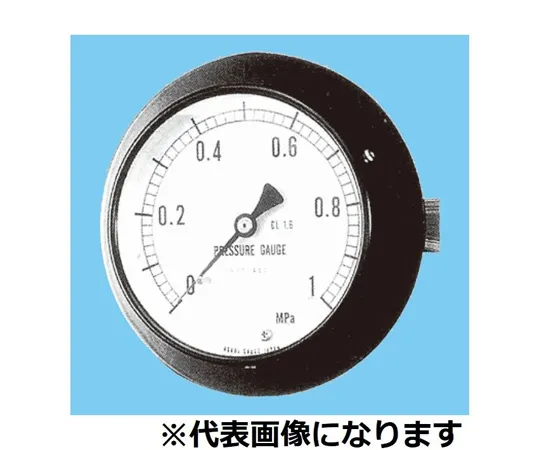

65-3451-71 Bourdon Pressure Gauge Type D Pressure Range (MPA): 0~0.04 101-D450X0.04MPA
