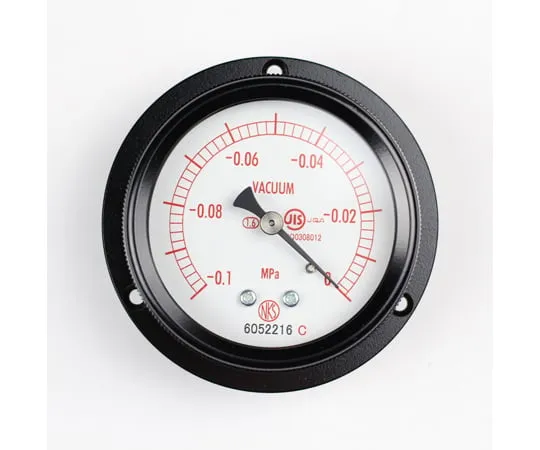

65-4293-80-20 Sealed Pressure Gauge (60Φ) Vacuum Gauge (Negative Pressure Gauge) Embedded D Frame (Mounting Hole) - With 0.1~0 MPa Inspection Certificate BA15-221
产品描述
产品型号: 65-4293-80-20产品品牌: NAGANO KEIKI Co., Ltd. 功能 A pr […]
联系我们
产品详细内容
产品型号: 65-4293-80-20
产品品牌: NAGANO KEIKI Co., Ltd.
功能
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is used in a wide range of fields.
- The use of a sealed case allows it to be used under conditions such as rain and dew. (Equivalent to JIS C 0920 IP 43)
规格
- Size (mm): Φ60
- Shape (Mounting): Embedded D Frame (Mounting Hole)
- Connections: G1/4B
- Material: Brass
- Performance: Pear
- Pressure Range: MPa_-0.1~0
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
