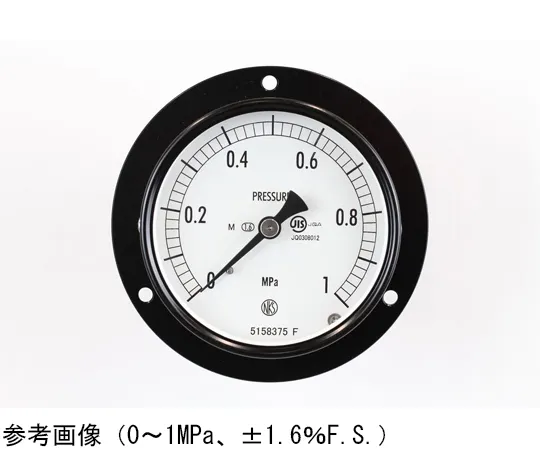

65-4274-93-20 Regular Pressure Gauge (Φ75) Embedded D Frame (Mounting Hole) with 0.1 MPa with Inspection Certificate for Steam AC15-231
产品描述
产品型号: 65-4274-93-20产品品牌: NAGANO KEIKI Co., Ltd. 功能 A pr […]
联系我们
产品详细内容
产品型号: 65-4274-93-20
产品品牌: NAGANO KEIKI Co., Ltd.
功能
- A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to a pointer. The simple structure makes handling easy. It can measure a wide pressure range and is used in a wide range of fields.
规格
- Size (mm): Φ75
- Shape (Mounting): Embedded D Frame (Mounting Hole)
- Connections: G3/8B
- Material: Brass
- Performance: For steam
- Pressure Range: MPa_0~0.1
- Accuracy: ±1.6%F.S.
- Treatment: Pear
- Category: JIS
