65-3541-81 Temperature Sensor for Micro Surface CS Series, Tip □2 x 10 mm/-50~400°, Pipe Shape: 90°, K Type, 50 mm CS-33K-005-1-TC1-ANP
产品描述
产品型号: 65-3541-81产品品牌: ANRITSU METER CO., LTD. 功能 The CS […]
联系我们
产品详细内容
产品型号: 65-3541-81
产品品牌: ANRITSU METER CO., LTD.
功能

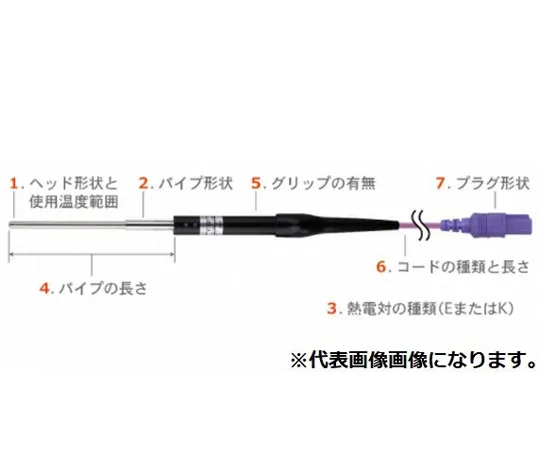

- The CS series is a temperature sensor for micro surfaces with a small temperature measuring section.
- It can measure the surface temperature of not only electronic substrate but also any object.
规格
- Head Shape/Operating Temperature Range: Tip □2 x 10 mm/-50~400°C
- Pipe Shape: 90°/CS-33, the longitudinal direction of the contact plate is parallel to the pipe.
- Thermocouple Type: K Type
- Length (mm): 50
- With grip: Yes
- Code Type: Grip/Standard Code
- Cord length (m): 1
- Plug Shape: Mini Plug (Thermocouple Homogeneous Metal)
