65-3534-17 Temperature Sensor for High Performance Moving Surface S Model Series with ISO Document Set -50~400°C Contact Roller Type Straight E Type S-641E-01-1-TPC1-ASP
产品描述
产品型号: 65-3534-17产品品牌: ANRITSU METER CO., LTD. 功能 S Seri […]
联系我们
产品详细内容
产品型号: 65-3534-17
产品品牌: ANRITSU METER CO., LTD.
功能
- S Series (S-5**/S-6**) is a high-performance temperature sensor for moving surfaces that uses a 4 point support structure at the contact part to eliminate the effect of frictional heat as much as possible.
- We can measure the surface temperature of a moving steel plate.
- In the cantilever type, one axis of the contact plate is fixed to prevent deformation of the contact plate due to deposits or distortion on the surface of the object to be measured.
- [Application] Temperature measurement of a die (die bonder) for semiconductor manufacturing equipment
- Induction heating steel burette surface temperature control and temperature measurement, etc.
- Temperature control and temperature measurement during the rolling process of metals and steel plates
- Measuring temperature between passes during welding
规格

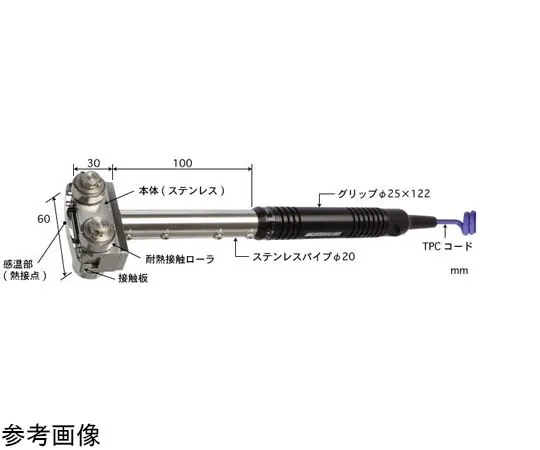

- Material: Guard (Roller) Material/Heat-Resistant Contact Roller, Contact Plate Material/Inconel Thickness 100 μm, Body Material/Stainless Steel (SUS303), Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~400
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 3
- Durability: At least 2000 hours at 300°C
- Head Shape: Contact Roller Type
- pipe shapes: straight
- Thermocouple Type: E Type
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3.8
- Coating Material: Polyurethane
- Heat-resistant Temperature (°C): 110
- Plug Shape: Standard Plug
- Calibration Temperature Point: 100, 200, 300°C
- Document content: Inspection report, calibration certificate, traceability system diagram
