65-3530-73 Sheath Thermocouple Temperature Sensor Shape: Terminal Box Type Outer Diameter 6.4φ 500 mm No Teflon Coating E Type C6.4-E-J1-M1-L500-TC1-ASP
产品描述
产品型号: 65-3530-73产品品牌: ANRITSU METER CO., LTD. 功能 A shea […]
联系我们
产品详细内容
产品型号: 65-3530-73
产品品牌: ANRITSU METER CO., LTD.
功能
- A sheath type sensor (sheath thermocouple) is an internal temperature sensor that can hold the sheath in a bent state (like a wire).
- Ideal for temperature control of liquid temperature, air temperature and furnace temperature
- [Application] Liquid internal temperature, air temperature, furnace internal temperature, food, etc.
规格

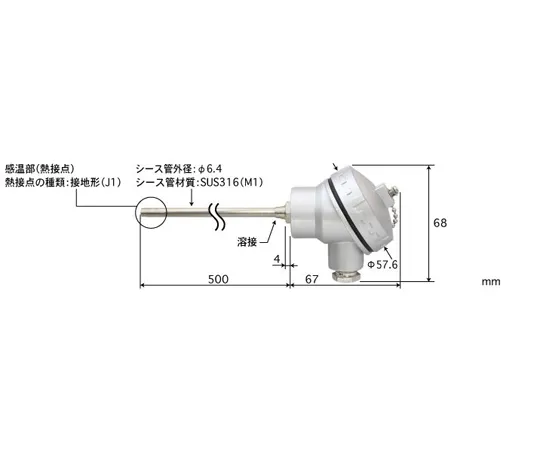

- shapes: terminal box types
- With or without Teflon coating: None
- Sheath Outer Diameter (φmm): 6.4
- Thermocouple Type: E Type
- Type of thermal contact: grounded type
- Sheath Tube Material: SUS316
- Sheath length (mm): 500
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
