65-3530-71 Sheath Thermocouple Temperature Sensor Shape: Sleeve Type Outer Diameter 1φ 1000 mm with Teflon Coating E Type BH1.0-E-J1-M1-L1000-TC1-ASP
产品描述
产品型号: 65-3530-71产品品牌: ANRITSU METER CO., LTD. 功能 A shea […]
联系我们
产品详细内容
产品型号: 65-3530-71
产品品牌: ANRITSU METER CO., LTD.
功能
- A sheath type sensor (sheath thermocouple) is an internal temperature sensor that can hold the sheath in a bent state (like a wire).
- Ideal for temperature control of liquid temperature, air temperature and furnace temperature
- [Application] Atmospheric temperature control and temperature measurement in an electric furnace

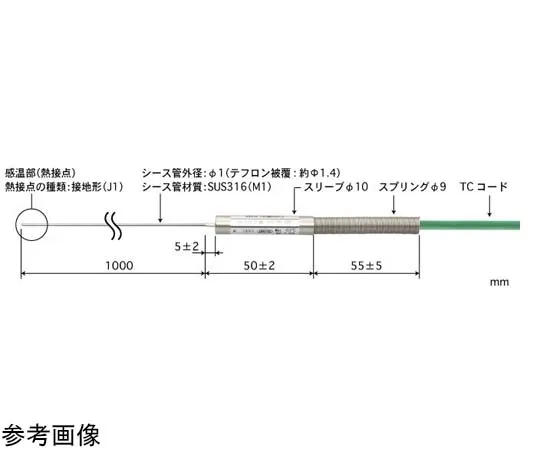

规格
- Shape: Sleeve Type
- With or without Teflon coating: Yes
- Sheath Outer Diameter (φmm): 1
- Thermocouple Type: E Type
- Type of thermal contact: grounded type
- Sheath Tube Material: SUS316
- Sheath length (mm): 1000
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
