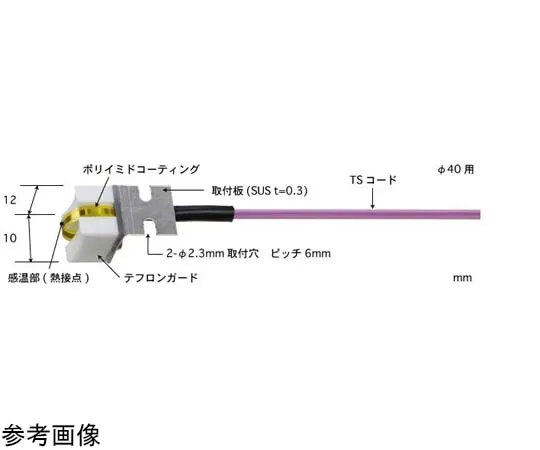

65-3529-49 Compact Moving Rotating Surface Temperature Sensor SH Series - E Type Mounting Type/General Type for 50~250°C φ40 SH-14E-TS1-ASP
产品描述
产品型号: 65-3529-49产品品牌: ANRITSU METER CO., LTD. 功能 The SH […]
联系我们
产品详细内容
产品型号: 65-3529-49
产品品牌: ANRITSU METER CO., LTD.
功能
- The SH Series is a compact temperature sensor for moving rotating surfaces suitable for measuring the temperature of moving rotating surfaces.
- [Application] Surface temperature control and temperature measurement of printer roller, etc.
规格
- Material: Guard Material/Teflon, Grip Material/Black Phenol Resin
- Operating temperature range (°C): -50~250
- Tolerance at 0~200 deg. C (deg. C): ±2.5
- Response Time (sec): 5
- Durability: Over 1000 hours
- Appearance Shape and Durability: Mounting Type/General Shape
- Guard Shape: For φ40
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
