65-3529-32 Temperature Sensor U Series for Moving/Rotating Surface -50~250°C Guard Type (Teflon) 29 x 60 K Type Straight, Parallel U-211K-01-D0-1-TC1-ASP
产品描述
产品型号: 65-3529-32产品品牌: ANRITSU METER CO., LTD. 功能 U-seri […]
联系我们
产品详细内容
产品型号: 65-3529-32
产品品牌: ANRITSU METER CO., LTD.
功能
- U-series is a temperature sensor for moving/rotating surfaces suitable for measuring the temperature of moving/rotating surfaces.
- [Application] Surface temperature control of laminate roller
规格
- Material: Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~250
- Tolerance at 0~200 deg. C (deg. C): ±2.5
- Response Time (sec): 3.5
- Durability: Over 1500 hours

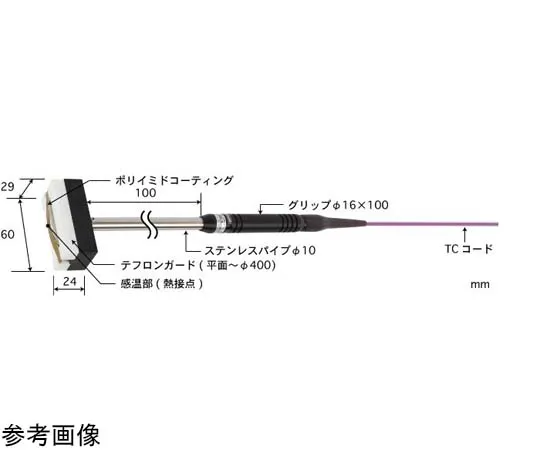

- Head Size (mm): 29 x 60
- Head Shape: Guard Type (Teflon)
- pipe shapes: straight, parallel
- Thermocouple Type: K Type
- Pipe length (mm): 100
- guard shapes: for planar faces
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
