65-3528-96 Temperature Sensor for High Performance Still Surface Contact Support Type SX Series -50~800°C 15φmm Type K 100 mm Straight SX-171K-01-1-TPC1-ASP
产品描述
产品型号: 65-3528-96产品品牌: ANRITSU METER CO., LTD. 功能 The SX […]
联系我们
产品详细内容
产品型号: 65-3528-96
产品品牌: ANRITSU METER CO., LTD.
功能
- The SX series is a high-performance temperature sensor with a "±4° contact support function" that allows the sensor's temperature sensitive part to follow and adhere to the object to be measured.
- High-level measurement that pursues response speed and durability can be easily performed.
- [Application] Preheating temperature control and temperature measurement of billets, etc.
规格
- Material: Head Material/Stainless Steel (SUS304), Pipe Material/Stainless Steel (SUS316), Contact Plate Material/Inconel Thickness, Grip Material/Polyacetal
- Operating temperature range (°C): -50~800
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1
- Durability: More than 60,000 cycles at 800°C

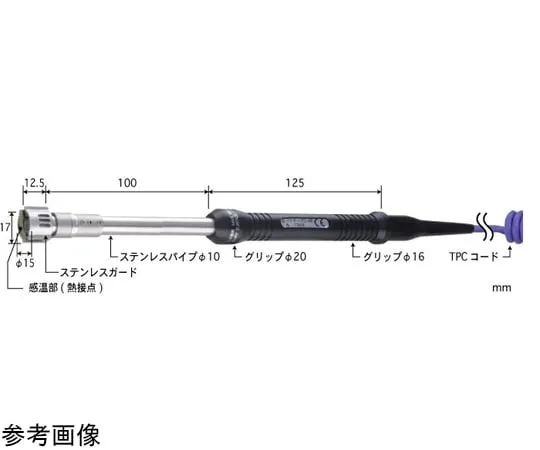

- Head Size (φmm): 15
- Head Type: High Temperature Type
- pipe shapes: straight
- Type of thermocouple: Type K
- Pipe length (mm): 100
- With grip
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3.8
- Coating Material: Polyurethane
- Heat-resistant Temperature (°C): 110
- Plug Shape: Standard Plug
