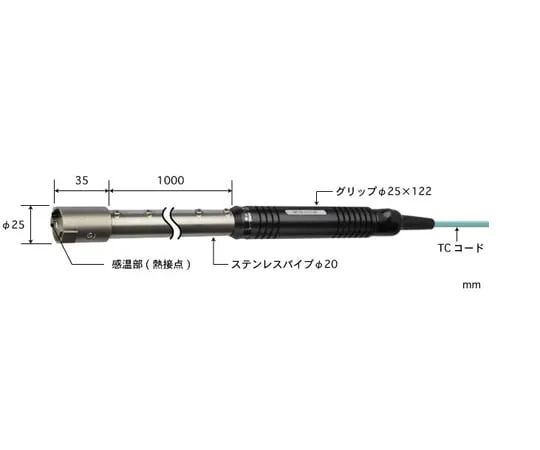

65-3528-89 Durable Type Temperature Sensor for High-Temperature Surfaces HHT Series -50~800°C Pipe Shape: Straight K Type HHT-41K-10-TC1-ASP
产品描述
产品型号: 65-3528-89产品品牌: ANRITSU METER CO., LTD. 功能 The HH […]
联系我们
产品详细内容
产品型号: 65-3528-89
产品品牌: ANRITSU METER CO., LTD.
功能
- The HHT series is a durable type temperature sensor for high-temperature surfaces, capable of measuring temperatures above 800°C
- [Application] Measurement of surface temperature of slab (steel), etc.
规格
- Material: Guard Material/Stainless Steel (SUS303), Pipe Material/Stainless Steel (SUS316), Grip Material/Polyacetal
- Operating temperature range (°C): -50~800
- Tolerance at 500 deg. C (deg. C): ±3.8
- Response Time (sec): 4
- Durability: More than 60,000 cycles at 800°C
- pipe shapes: straight
- Thermocouple Type: K Type
- Pipe length (mm): 1000
- Cord length (m): 1
- Cord Outer Diameter (φmm): 4
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Standard Plug
