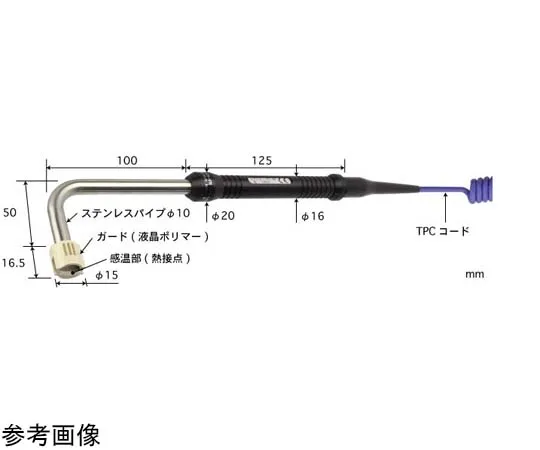

65-3528-69 High Performance Temperature Sensor for General Still Surfaces S-Type Series -50~300°C Low Temperature Type 15φ (Flat) 90° Type E S-113E-01-1-TPC1-ASP
产品描述
产品型号: 65-3528-69产品品牌: ANRITSU METER CO., LTD. 功能 S Seri […]
联系我们
产品详细内容
产品型号: 65-3528-69
产品品牌: ANRITSU METER CO., LTD.
功能
- S Series (S-1**/S-2**/S-3**) is a high-performance temperature sensor for general surface temperature measurement regardless of metal or non-metal.
- High-level measurement in pursuit of response speed and durability is possible.
- [Application] Temperature measurement of a die (die bonder) for semiconductor manufacturing equipment
- Induction heating steel burette surface temperature control and temperature measurement, etc.
- Temperature control and temperature measurement during the rolling process of metals and steel plates
- Measuring temperature between passes during welding
规格
- Material: Head Material/Liquid Crystal Polymer, Pipe Material/Stainless Steel (SUS316), Contact Plate Material/Inconel Thickness 100 μm, Grip Material/Polyacetal
- Operating temperature range (°C): -50~300
- Tolerance at 100 deg. C (deg. C): ±2.5
- Response Time (sec): 1
- Durability: More than 100,000 cycles at 300°C
- Head Size (φmm): 15 (Flat)
- Head Type: Low Temperature Type
- Pipe Shape: 90°
- Type of thermocouple: Type E
- Pipe length (mm): 100
- With/without grip: Yes
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3.8
- Coating Material: Polyurethane
- Heat-resistant Temperature (°C): 110
- Plug Shape: Standard Plug
