产品详细内容
产品型号: 64-5230-14
产品品牌: ANDO KEIKI
功能
- SUS overturning type rain gauge, single item, general item
- A recorder is required for measurement.
- It is a fall type rain gauge feeling part for interval measurement.
- It falls every certain amount (0.5 mm) of rainfall entering the water receiving port of 200 mm diameter, but the falling operation is detected by the reed switch, and the contact pulse signal is output.
- Stable observation and measurement is possible for a long time.
- Relatively easy to install.
- Body: Stainless Steel, Base: Aluminum Alloy, Leg: Metal
规格
- AND-R02 (SUS倾覆式雨量计) 规格
- 检测方法:跌落
- 水接收部分直径:Φ200 mm
- (i) 降雨量:0.5毫米 (15.7 CC);
- 准确性:降雨量不超过20毫米的在+/-0.5毫米以内，降雨量不少于20毫米的在+/-3%以内。
- 输出信号:无电压接触式信号2触点
- 联系时间:0.1~0.15秒
- 绝缘电阻:500 VDC 500 MΩ以上
- 电压:1000 VAC 1分钟
- 外筒材料:SUS 304
- 基材:铝合金铸造材料
- 涂层颜色:外筒不锈钢，瓶盖金光油，主机灰色 (相当于Mansell5GY6/1)
- 外部维度:约。210 mm x 450 mm (H)
- 重量:约。3.4公斤
- 附件:约10米
相关产品推荐
您可能还对以下产品感兴趣
理化检测
67-4841-68 Glycerin Tonometer/AUPT1/4-60 GV50-173 x 1MPA 0475-01-0006352
型号: 67-4841-68
品牌: NAGANO KEIKI Co., Ltd.
理化检测
2-1336-01-56 Separate Thermometer (wall-mounted) - 50 ~ 50℃ with English Calibration Certificate LB-100S
型号: 2-1336-01-56
品牌: Sato Keiryoki Mfg. Co., Ltd.
理化检测

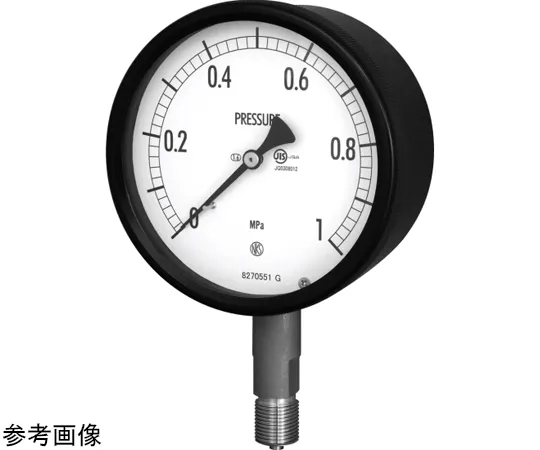

69-3927-50 φ100 Pressure Meter JIS Compatible Sealed Pressure Meter BE12 Corrosion-Resistant SUS Made G3/8B A Frame BE12-133-0.1-0.16MPA
