产品详细内容
产品型号: 62-8579-88
产品品牌: ELPA
功能
- It is a pen type galvanometer that checks the current status of non-contact type (AC) and contact type (AC) easily.
- Comes with a volume that allows sensitivity adjustment during non-contact measurement.
- With AC100V/200 V voltage discrimination function. (Only during contact type measurement.). Accurate voltage determination is not possible when the ground condition is unstable. )
- Comes with LED light which is convenient in the dark.
规格
- 接触式电压检测范围:7 VAC到1000 V
- 非接触式电压检测范围:30 VAC到1000 VAC
- 指示器:在非接触模式下检测器LED:30 VAC,在检测到100电压为1000 V时点亮，在接触模式下检测器LED:7 VAC,在检测到电压为125 V左右时点亮，在接触模式下检测器LED:200 125 VAC,在检测到电压为1000 V时点亮
- 灵敏度调节功能:检测电压的灵敏度可以通过主机背面的音量调节 (在非接触模式下启用凿子) 。
- 绝缘电压:2000 VAC/1分钟 (开关检测单元)
- 照明功能:每次按下LED按钮时都可以打开/关闭LED灯。
- 工作温度和湿度:0°C~+40°C, 75% RH或更低(但是，不能有凝结。)
- 贮藏温度和湿度:-10°C~+50°C, 75% RH以下(但是，不能有凝结。)
- 电源:LR 44纽扣电池X 2块 (内置测试用)
- 外形尺寸 (约。) :W 17.5 x H 132 x D 18 (mm)
- 质量:约24克 (含电池)
相关产品推荐
您可能还对以下产品感兴趣
理化检测

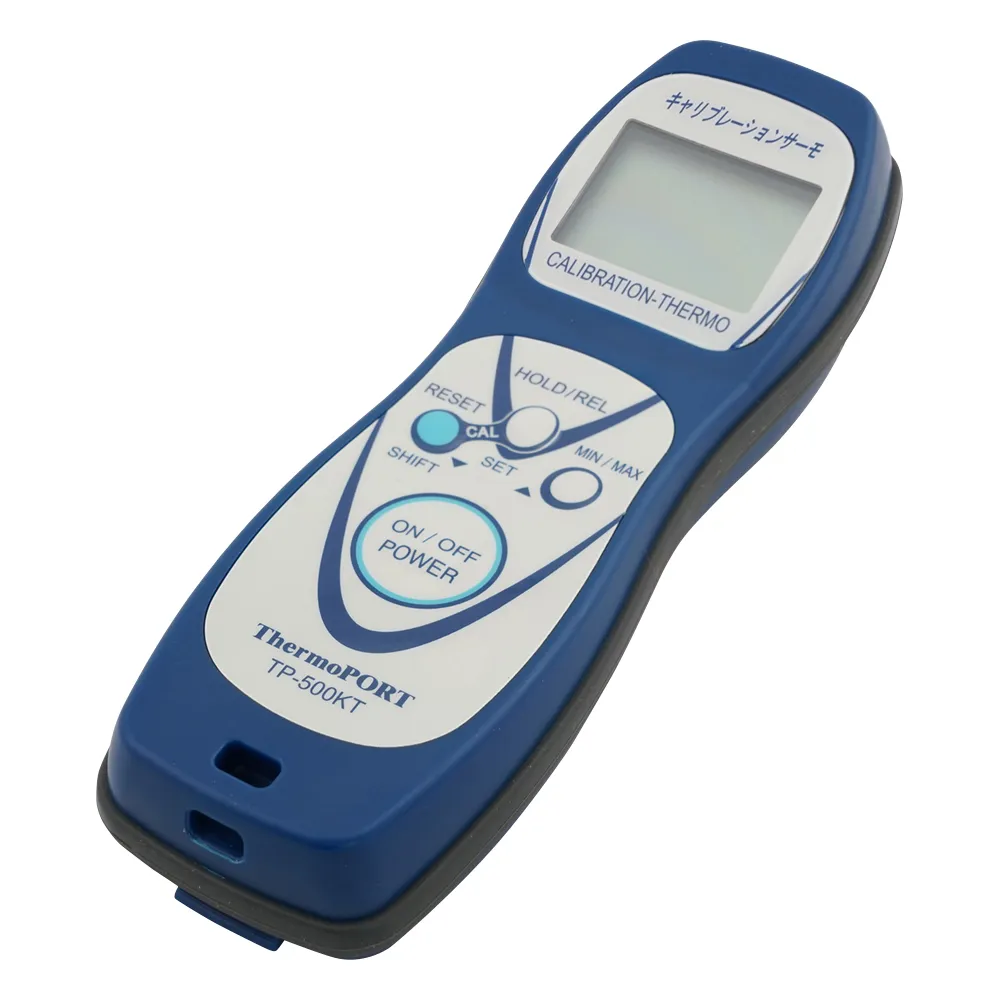

2-448-01-56 Handy Thermometer (fast response temperature compensation structure type) with English Calibration Certificate TP-500KT
型号: 2-448-01-56
品牌: Thermo-port Co.
理化检测
理化检测

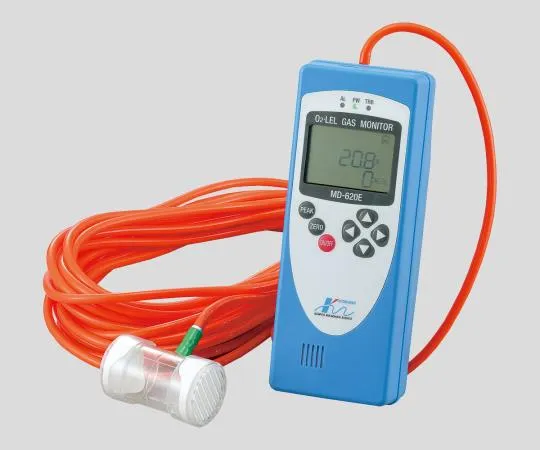

61-9735-69 复合型气体测量仪MD-620E > 具有测试证书< 12054160
型号: 61-9735-69
品牌: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
理化检测

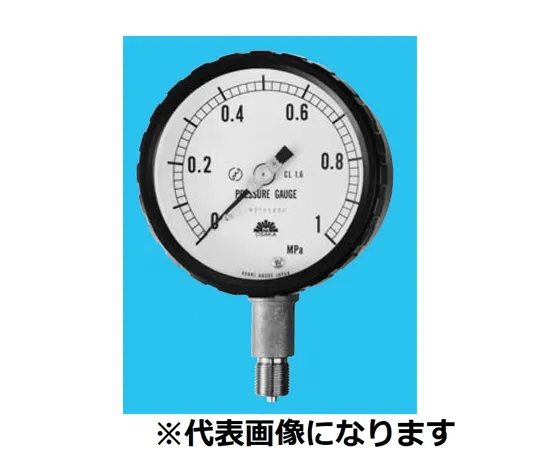

65-3502-75 Sealed Pressure Gauge Type A Vibration-Resistant Pressure Range (MPA): 0~0.05 325-A750X0.05MPA-MV
