产品详细内容
产品型号: 65-9006-81
产品品牌: NITTO KOHKI CO., LTD.
功能
- For low pressure.
- "Coupler" with excellent versatility, from air piping in factories to hose connections for air tools.
- Stainless steel is suitable for water. However, be aware that the fluid on the plug side will flow out during separation.
- A wide range of body materials, sizes and mounting shapes have been standardized to meet a wide range of pneumatic applications.
- Compatibility: Model 10, Model 17, Model 20, Model 30, Model 40 can connect the socket and plug regardless of the mounting shape. Can be connected to products of the "High Coupler" series and "Nat Coupler" series.
规格
- Counterpart Mounting Screw Size: R3/8
- Body Material: Stainless Steel
- Mass (g): 95
- L(mm):50.5
- ΦD(mm):25.4
- H (mm): Hex 21
- T:Rc3/8
- Valve Structure: One Way Opening/Closing Type
- Applied fluids: Air, Water
- Maximum Working Pressure (MPa{kgf/cm2}): 1.5{15}
- Pressure Capacity (MPa{kgf/cm2}): 2.0{20}
- Seal Material: Fluororubber
- display symbols: FKM
- Operating Temperature Range (°C): -20 to +180
- Remarks: Standard Material
- Recommended maximum tightening torque (N · m{kgf · cm}): 22{224}
- Mounting Shape: Female Thread
- Type: Socket
相关产品推荐
您可能还对以下产品感兴趣
连接器/管件/泵阀
连接器/管件/泵阀

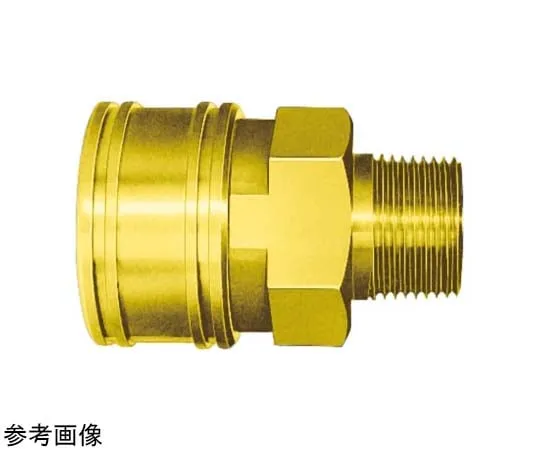

65-9007-06 ［Discontinued］TSP Coupler Screw Size Rc1 Brass 665 g 8TSMBRASSFKM
