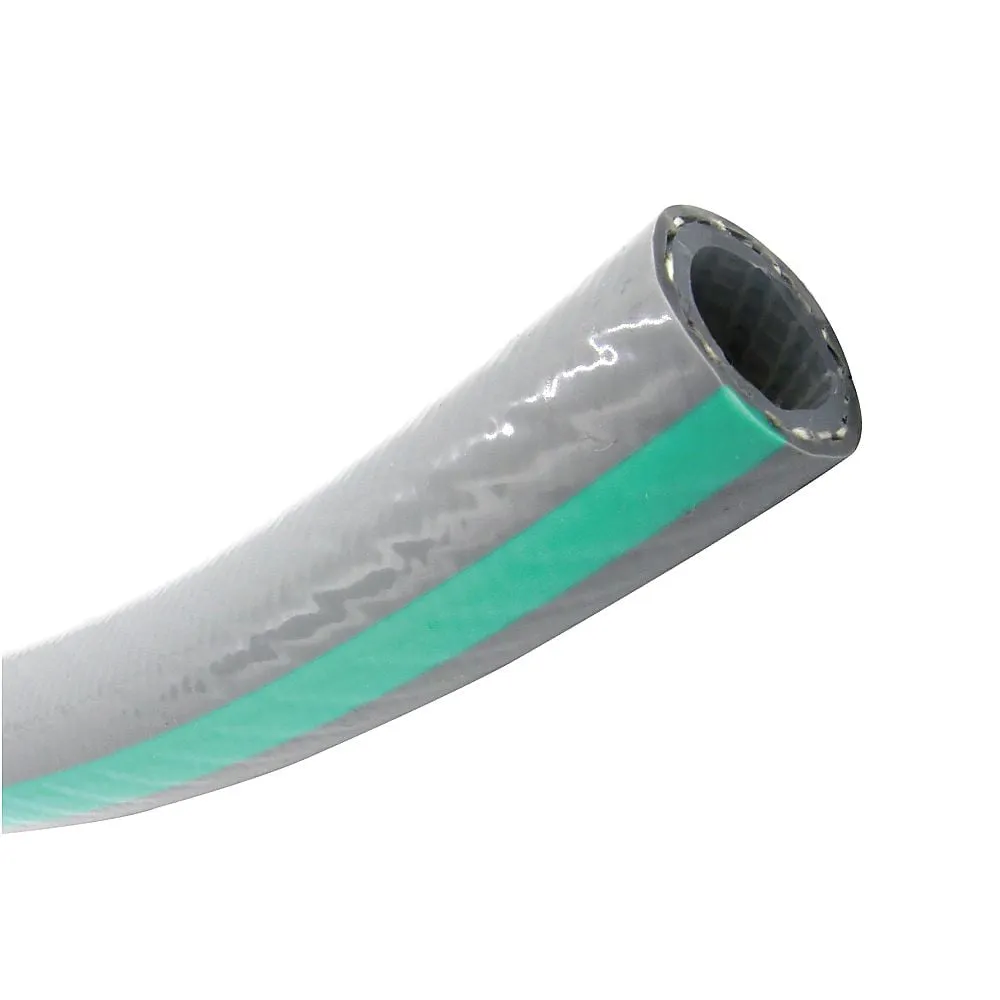

67-9206-95 Heat and Pressure Resistant Hose for Steam and High Temperature Water TOYOSILICONE Steam Hose Inner Diameter 15.9 mm 20 m TSISTM-15-20
产品描述
产品型号: 67-9206-95产品品牌: TOYOX CO., LTD. 功能 "Heat-resistan […]
联系我们
产品详细内容
产品型号: 67-9206-95
产品品牌: TOYOX CO., LTD.
功能
- "Heat-resistant": Heat-resistant and pressure-resistant bladed steam hose for pressure feeding made of silicone rubber. Steam hose that can be d in steam or high temperature water up to 140°C.
- Lightweight: Light and easy to handle (1/2 weight compared to general steam rubber hose)
- Flexibility: Flexible, soft and easy to handle (General steam rubber hose ratio: 1/4 bending repulsion)
- "Long life": Reduced risk of contamination due to less cracking
- "Low odor": Silicone rubber makes the hose smell less.
规格
- Inner Diameter x Outer Diameter (mm): 15.9 x 24
- Pressure (Mpa): 0~0.3 (Steam ~140°C), 0~0.5 (Hot Water ~140°C)
- Operating temperature range: -30~140°C
- Length: 20 m
- Material: Body/Silicone Rubber, Reinforcement/Polyester Thread
- Minimum bend radius: 150 mm
