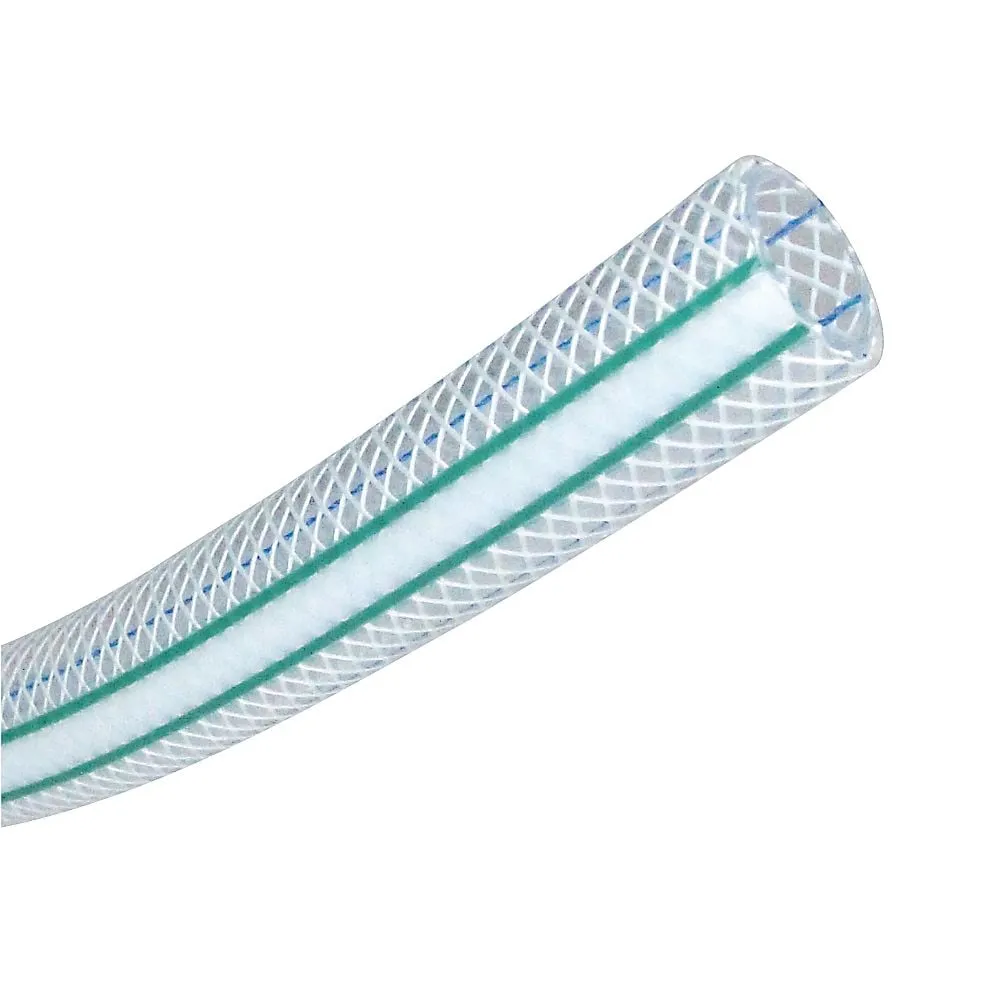

67-5227-74 Pressure-Resistant Blade Hose for Plant Piping (Environmental Product) TOYOBIOPRO Hose Inner Diameter 25 x Outer Diameter 33 mm Length 1 m TBP-25-1
产品描述
产品型号: 67-5227-74产品品牌: TOYOX CO., LTD. 功能 Pressure-resis […]
联系我们
产品详细内容
产品型号: 67-5227-74
产品品牌: TOYOX CO., LTD.
功能
- Pressure-resistant blade hose for industrial and plant piping (environmental product).
- We raw materials derived from natural resources to protect the global environment.
- Biomass plasticizer is d for the outer tube of this pressure-resistant blade hose. This product is certified to meet 15% biomass.
- This pressure-resistant blade hose is a product that reduces greenho gas emissions.
- As a multi-purpose hose, it can be d for water, oil, chemicals, air, etc.
- As a pressure resistant blade hose, it has the same performance as Toyoron hose.
规格
- Inner Diameter x Outer Diameter (mm): 25 x 33
- Pressure (Mpa): 23°C/0~1.0, 60°C/0~0.6
- Operating temperature range: -5~60°C
- Length: 1 m
- Material: Body/Soft Vinyl Chloride, Reinforcement/Polyester Thread
- Minimum bend radius: 195 mm
- RoHS2 Compliant (as of June 2023)
