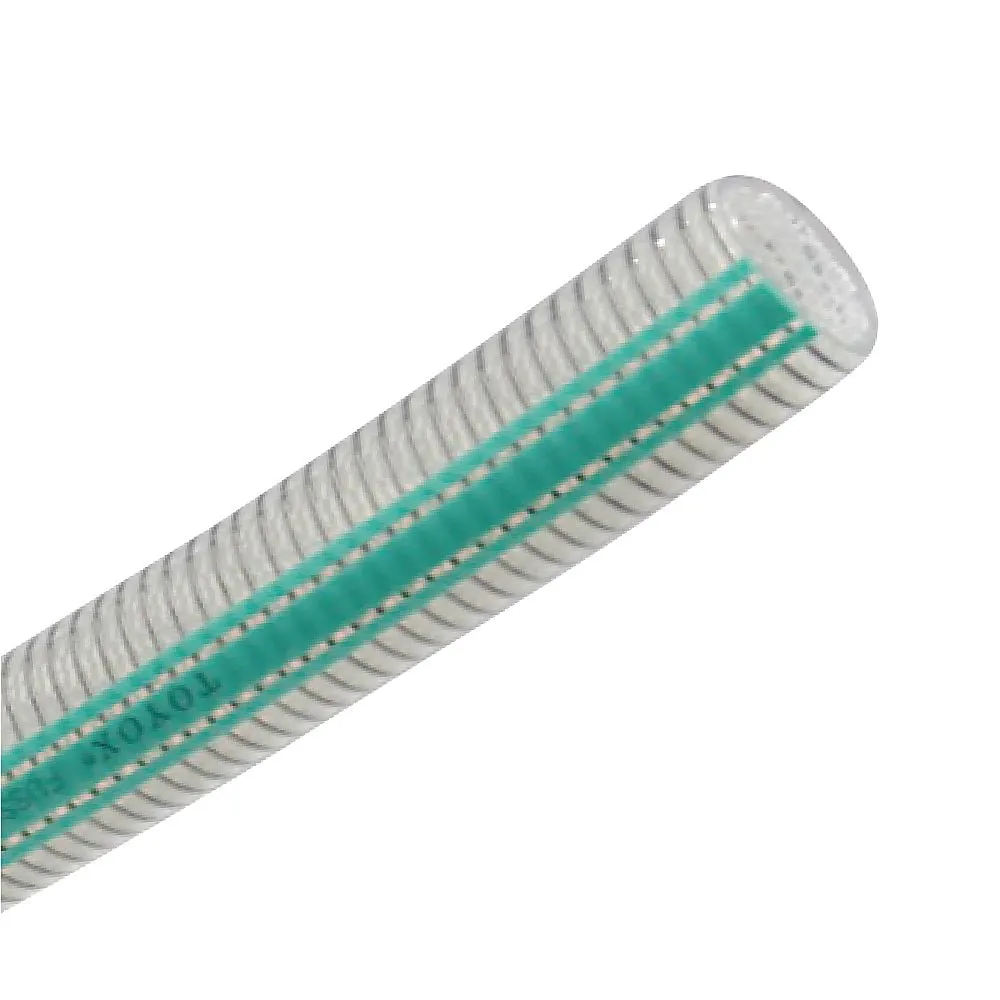

67-5227-03 Hose for transportation and suction piping of food, cosmetics, chemicals, etc. Fuso Thermo S100C Hose Inner Diameter 15.9 mm x Outer Diameter 24 mm Length 1 m FSTH100C-15-1
产品描述
产品型号: 67-5227-03产品品牌: TOYOX CO., LTD. 功能 Heat-resistant […]
联系我们
产品详细内容
产品型号: 67-5227-03
产品品牌: TOYOX CO., LTD.
功能
- Heat-resistant, oil-resistant, chemical-resistant and pressure-resistant fluorine hose for food, cosmetics and pharmaceuticals.
- Has excellent heat resistance and can handle fluids containing oil up to 100°C.
- Has excellent chemical and solvent resistance and good durability.
- Highly flexible, soft and workable.
- The inner layer is 4 fluorinated fluororesin and can be d up to 100°C with excellent cleanability and quick cleaning.
- Since it is non-adhesive, water repellent and has excellent heat resistance, it is hygienic and does not smell or color fluids.
规格
- Inner Diameter x Outer Diameter (mm): 15.9 x 24
- Pressure (Mpa): -0.1~0.5
- Operating temperature range: -5~100°C
- Length: 1 m
- Material: Body/4 Fluorinated Fluororesin (Modified ETFE)/Silicone Rubber, Reinforcement/Polyester Thread/SUS316
- Minimum bend radius: 105 mm
- RoHS2 Compliant (as of June 2023)
