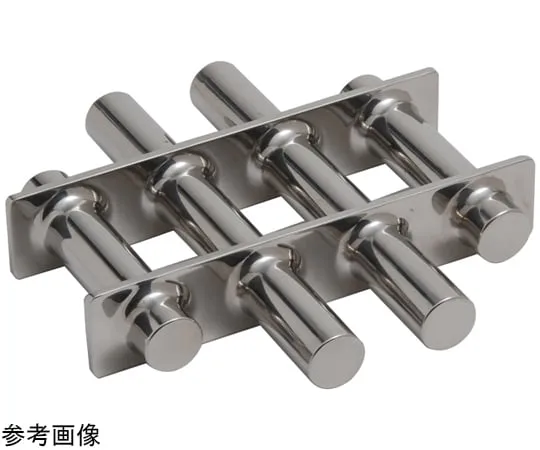

67-4591-14 Sanitary Magnet Round Grid Dimension ΦD (mm): 200 Dimension H (mm): 50 Number of Pieces: 4 Magnet Pipe Diameter (mm): Φ25 Magnet Pipe Material: SUS316L/SUS304 SMGM200
产品描述
产品型号: 67-4591-14产品品牌: SUPER TOOL Co., Ltd. 功能 Stronger […]
联系我们
产品详细内容
产品型号: 67-4591-14
产品品牌: SUPER TOOL Co., Ltd.
功能
- Stronger magnets arranged in a grid pattern are installed in a round hopper, etc., to absorb impurities such as fine iron powder and stainless steel abrasion powder while the powder particles as raw materials fall.
- Suitable for removing foreign substances in food, chemical, and other manufacturing processes.
- Sanitary specification allows for in liquid tanks.
规格
- Dimension phi D (mm): 200
- Dimension H (mm): 50
- Number: 4
- Magnet Pipe Diameter (mm): Φ25
- Magnet Pipe Material: SUS316L/SUS304
- Flat Bar Finish: Buff #400
- Flat Bar Material: SUS304
- Operating environmental temperature (°C): < 80
- Surface maximum magnetic flux density (T (G)): 1 (10,000)
