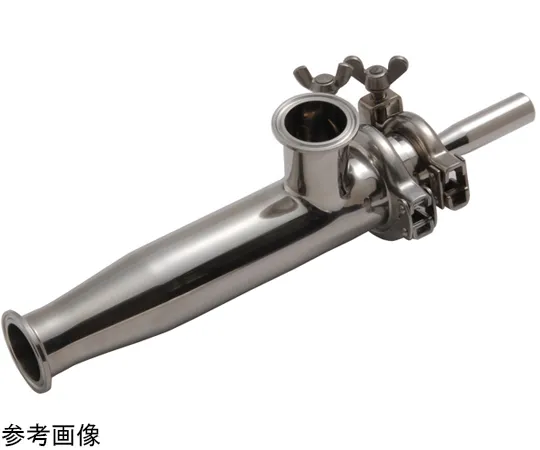

67-4590-81 Sanitary Magnet L-Type Dimension A (mm): 2 S Dimension B (mm): Φ47.8 Dimension C (mm): 1.5 S Dimension D (mm): Φ35.7 Dimension E (mm): 70 SMGL15
产品描述
产品型号: 67-4590-81产品品牌: SUPER TOOL Co., Ltd. 功能 Suitable […]
联系我们
产品详细内容
产品型号: 67-4590-81
产品品牌: SUPER TOOL Co., Ltd.
功能
- Suitable for juices, fruit juices, dairy products, tea, soy sauce, chili oil, minced meat, seasoning liquid, etc., effective for places with low processing volume (flow rate).
- The structure is simple and can be separated and cleaned easily.
- Compact and does not take up space for installation.
- Sanitary specification suitable for food and medicine.
规格
- Dimension A (mm): 2S
- Dimension B (mm): phi 47.8
- Dimension C (mm): 1.5 S
- Dimension D (mm): phi 35.7
- Dimension E (mm): 70
- Dimension F (mm): 200
- Dimension L (mm): (359)
- Magnet Pipe Diameter (mm): Φ25
- Magnet Pipe Material: SUS316L
- Finish: Buff #400
- Material: Stainless Steel SUS304
- Operating environmental temperature (°C): < 80
- Surface maximum magnetic flux density (T (G)): 1 (10,000)
