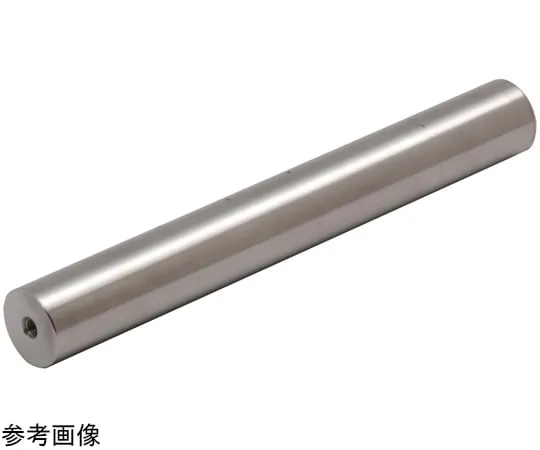

67-4589-91 Magnet Bar Type: Exterior Pipe with Tap Hole (Φ25 x Length) (mm): 100 Mass (kg): 0.36 Surface Maximum Magnetic Flux Density (T (G)): 0.8 (8000) SMGB810T
产品描述
产品型号: 67-4589-91产品品牌: SUPER TOOL Co., Ltd. 功能 Sanitary […]
联系我们
产品详细内容
产品型号: 67-4589-91
产品品牌: SUPER TOOL Co., Ltd.
功能
- Sanitary specification and high quality finish waterproof structure by special welding.
- Can be incorporated in a wide range of applications as a single unit.
- Can support required length, diameter and magnetic force.
- "High magnetic force" "high secret" "high quality" finish.
规格
- Type: With Tap Hole
- Exterior Pipe (Φ25 x Length) (mm): 100
- Mass (kg): 0.36
- Surface maximum magnetic flux density (T (G)): 0.8 (8000)
- Interior permanent magnet characteristic value (T (G)): 1.2 (12000)
- Tapped Holes: M6 x 8
- Material: Stainless Steel SUS316L
- Surface Finish: #400 Buff Finish
- Operating environmental temperature (°C): < 80
