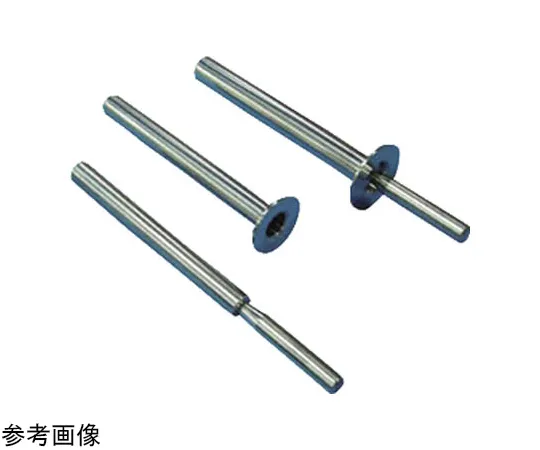

67-4589-69 Magnet Bar Φ Outer Diameter L (mm): 342 Φ Outer Diameter l (mm): 250 Φ Outer Diameter l2 (mm): 92 Mass (kg): 0.92 SMGB825W
产品描述
产品型号: 67-4589-69产品品牌: SUPER TOOL Co., Ltd. 功能 Sanitary […]
联系我们
产品详细内容
产品型号: 67-4589-69
产品品牌: SUPER TOOL Co., Ltd.
功能
- Sanitary specification and high quality finish by special welding.
- By the double tube structure, the adsorbed iron powder can be easily removed without getting your hands dirty just by pulling out the magnet bar.
- Can be incorporated in a wide range of applications as a single unit.
- All grips are made of stainless steel.
- Can support required length, diameter and magnetic force.
- "High magnetic force" "high secret" "high quality" finish.
规格
- Φ Outer Diameter Dimension L (mm): 342
- Φ Outer Diameter l (mm): 250
- Φ Outer Diameter Dimension l2 (mm): 92
- Mass (kg): 0.92
- Surface maximum magnetic flux density (T (G)): 0.8 (8000)
- Interior permanent magnet characteristic value (T (G)): 1.35 (13500)
- Material: Stainless Steel SUS316L
- Surface Finish: #400 Buff Finish
- Operating environmental temperature (°C): < 80
